New Holland

E30

Mini Excavator

Operating Weight
6,680 lb
Max Digging Depth
111 in
Net Power
28.4 hp
All mini excavators

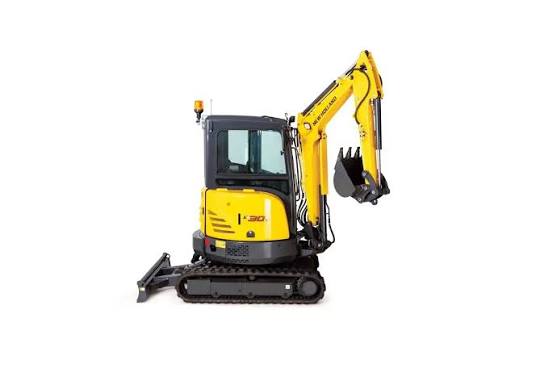

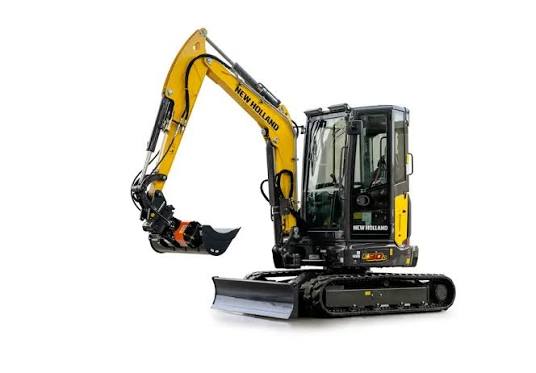

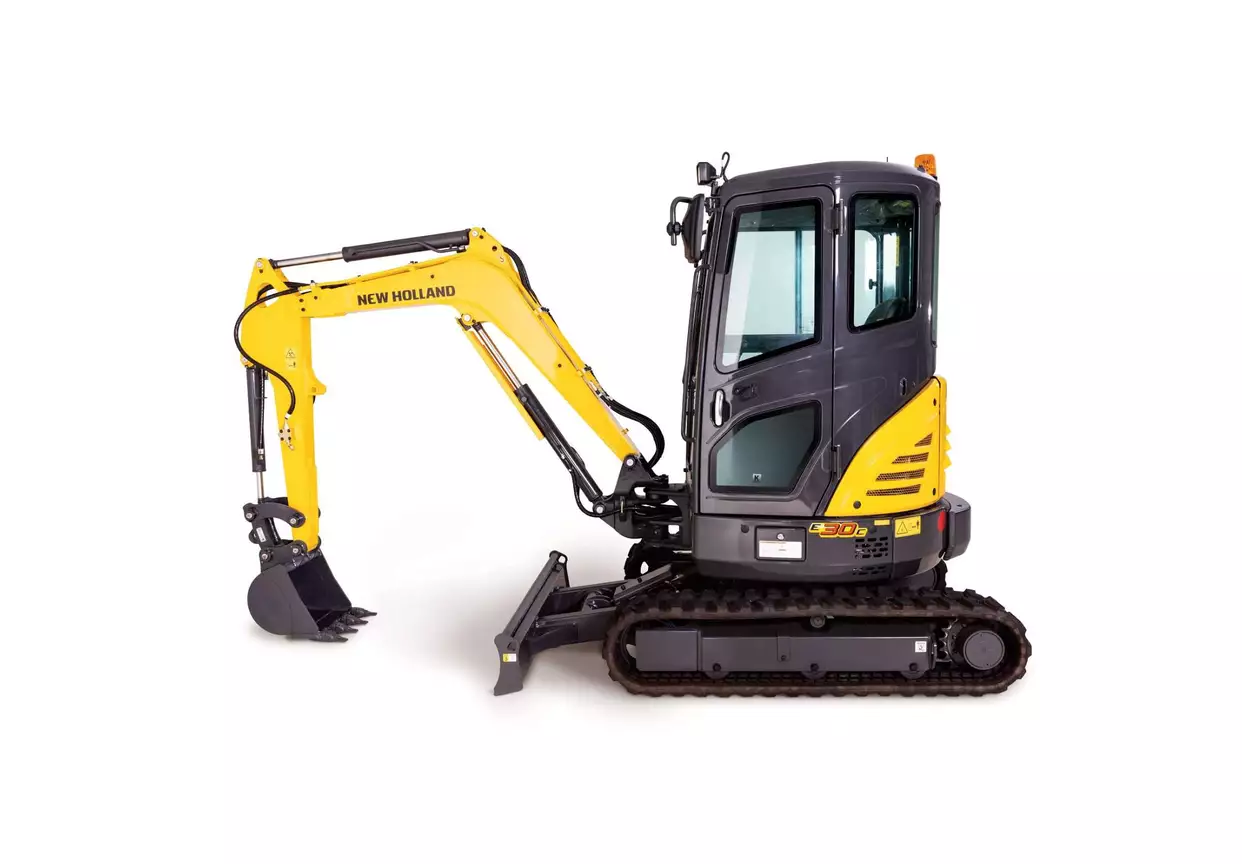

New Holland E30 Mini Excavator
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,680 lb
Fuel Capacity10.0 gal
Hydraulic Pump Flow Capacity15.5 gal/min
Hydraulic System Fluid Capacity12.7 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine Model3TVN88-PYB
Displacement100 in³
Power Measured @2,400 rpm
Net Power28.4 hp
Number of Cylinders3
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab102 in
Length of Track on Ground79 in
Tail Swing Radius31 in
Width to Outside of Tracks48 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge50 in
Max Travel Speed2.8 mph
Shoe Size12 in
Drawbar Pull8,663 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth111 in
Max Reach Along Ground189 in
Max Vertical Wall Digging Depth85 in
Max Loading Height132 in
Shipping Length of Unit174 in
Max Cutting Height189 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque752 lb-ft
