John Deere
6200
- Operating Weight
- 9,015 lb
- Displacement
- 238 in³
- Power Measured @
- 2,300 rpm
- Gross Power
- 89.0 hp
1 / 5

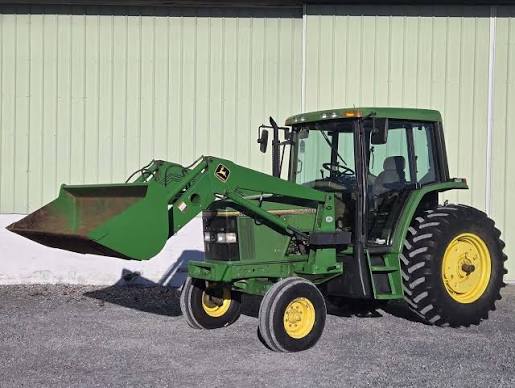

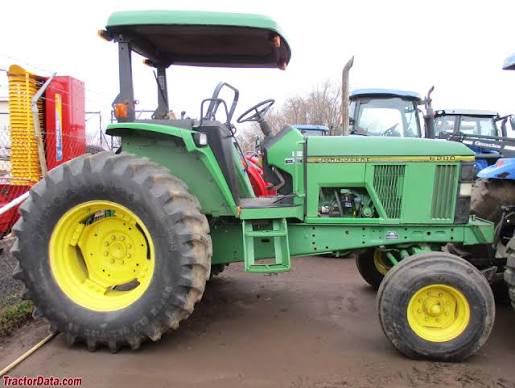

Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 9,015 lb |
|---|---|
| Fuel Capacity | 29.0 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 5,020 lb |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 12.4 gal |
Engine
| Displacement | 238 in³ |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 89.0 hp |
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| PTO Power | 66.0 hp |
| Stroke | 4 in |
| Bore | 4 in |
Hydraulic System
| Pump Flow Capacity | 18.0 gal/min |
|---|---|
| Number of Remote Control Valves | — |
| Hydraulic System Type | Closed-center pressure flow |
| Maximum system pressure | 2,900 psi |
Dimensions
| Wheelbase | 95 in |
|---|---|
| Overall Length | 165 in |
| Overall Width | 86 in |
| Height - Top of ROPS/FOPS | 101 in |
| Front Axle Clearance | 23 in |
Transmission
| Number of Forward Gears | 12 |
|---|---|
| Transmission Type | Fully synchronized |
| Number of Reverse Gears | 4 |
