John DeereZettelmeyer
ZL1002
Wheel Loader
6 specifications

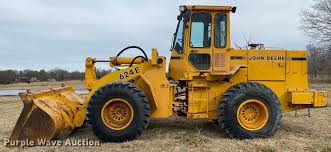

John Deere
624E
- Operating Weight
- 27,567 lb
- Bucket Capacity - heaped
- 2.69 yd³
- Gross Power
- 141.0 hp
- Net Power
- 135.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 27,567 lb |
|---|---|
| Fuel Capacity | 55.0 gal |
| Tire Size | 17.5-25 |
| Hydraulic System Fluid Capacity | 27.0 gal |
| Static Tipping Weight | 21,350 lb |
| Operating Voltage | 12 V |
| Turning Radius | 202 in |
| Engine Oil Fluid Capacity | 5.1 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 6.1 gal |
| Rear Axle/Diff Fluid Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 6.7 gal |
| Transmission Fluid Capacity | 3.0 gal |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 141.0 hp |
| Net Power | 135.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 57.0 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 3.5 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 2,800 psi |
| Pump Type | Gear Pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 120 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 36 in |
| Length with Bucket on Ground | 291 in |
| Hinge Pin - Max Height | 154 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 15.2 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.69 yd³ |
|---|---|
| Bucket Capacity - struck | 2.30 yd³ |
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 30,298 lb |
| Bucket Width | 102 in |
