Volvo

BM 4200B

Wheel Loader

Operating Weight
16,755 lb
Bucket Capacity - heaped
1.60 yd³
Gross Power
90.0 hp
Net Power
84.0 hp
All wheel loaders

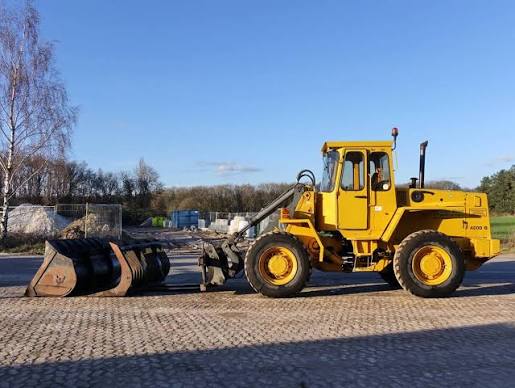

Volvo BM 4200B Wheel Loader
1 / 5
Image 1 of 5
Image: psauction.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,755 lb
Fuel Capacity42.3 gal
Tire Size15.5R25
Hydraulic System Fluid Capacity33.1 gal
Static Tipping Weight11,464 lb
Operating Voltage24 V
Turning Radius207 in
Engine Oil Fluid Capacity2.7 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage55 A
Front Axle/Diff Fluid Capacity6.0 gal
Rear Axle/Diff Fluid Capacity6.0 gal
Cooling System Fluid Capacity7.2 gal
Transmission Fluid Capacity4.8 gal

Engine

Engine specifications
Engine ModelBM D 45 B
Displacement273 in³
Power Measured @2,200 rpm
Gross Power90.0 hp
Net Power84.0 hp
Number of Cylinders4
Torque Measured @1,200 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Raise Time5.5 s
Lower Time3.4 s
Dump Time2.2 s
Relief Valve Setting2,320 psi
Pump TypeVane pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab117 in
Wheelbase107 in
Width Over Tires85 in
Reach at Max Lift and Dump31 in
Length with Bucket on Ground240 in
Hinge Pin - Max Height146 in

Transmission

Transmission specifications
Max Speed - Forward26.1 mph
Max Speed - Reverse26.1 mph
Transmission Typepower-shift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped1.60 yd³
Dump Clearance at Max Raise115 in
Breakout Force10,692 lb
Bucket Width91 in
