John Deere

624GH

Wheel Loader

Operating Weight
27,435 lb
Bucket Capacity - heaped
3.00 yd³
Gross Power
161.0 hp
Net Power
150.0 hp
All wheel loaders

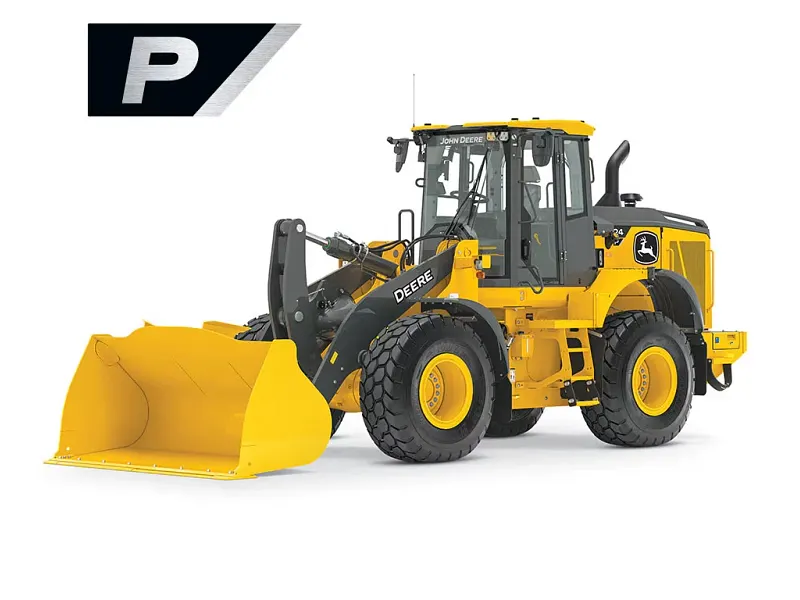

John Deere 624GH Wheel Loader
1 / 5
Image 1 of 5
Image: deere.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,435 lb
Fuel Capacity65.8 gal
Tire Size17.5-25
Hydraulic System Fluid Capacity27.0 gal
Static Tipping Weight21,205 lb
Operating Voltage12 V
Turning Radius203 in
Engine Oil Fluid Capacity5.1 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage95 A
Front Axle/Diff Fluid Capacity7.4 gal
Rear Axle/Diff Fluid Capacity5.1 gal
Cooling System Fluid Capacity6.7 gal
Transmission Fluid Capacity3.0 gal

Engine

Engine specifications
Engine Model6068T
Displacement414 in³
Power Measured @2,200 rpm
Gross Power161.0 hp
Net Power150.0 hp
Number of Cylinders6
AspirationTurbocharger
Torque Measured @1,350 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity61.0 gal/min
Raise Time5.8 s
Lower Time3.5 s
Dump Time1.7 s
Relief Valve Setting2,800 psi
Pump TypeGear type open -center system

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab131 in
Wheelbase120 in
Width Over Tires101 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground293 in
Hinge Pin - Max Height154 in

Transmission

Transmission specifications
Max Speed - Forward23.0 mph
Max Speed - Reverse15.2 mph
Transmission TypePower Shift with Torque Converter
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.00 yd³
Bucket Capacity - struck2.69 yd³
Dump Clearance at Max Raise114 in
Breakout Force29,404 lb
Bucket Width102 in
