Volvo

BM 654

Wheel Loader

Operating Weight
16,535 lb
Bucket Capacity - heaped
1.50 yd³
Gross Power
113.0 hp
All wheel loaders

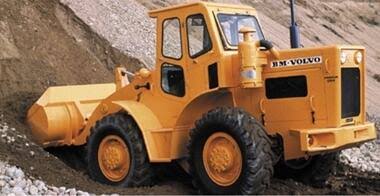

Volvo BM 654 Wheel Loader
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,535 lb
Tire Size14X24/12
Static Tipping Weight8,598 lb
Turning Radius1 in

Engine

Engine specifications
Engine ModelD 50 A
Power Measured @2,500 rpm
Gross Power113.0 hp
Number of Cylinders6

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity40.2 gal/min
Raise Time6.0 s
Lower Time4.0 s
Relief Valve Setting1,849 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab109 in
Wheelbase80 in
Reach at Max Lift and Dump36 in
Length with Bucket on Ground216 in
Hinge Pin - Max Height128 in

Transmission

Transmission specifications
Max Speed - Forward18.7 mph
Max Speed - Reverse7.5 mph
Transmission Typepower shift
Number of Forward Gears2
Number of Reverse Gears1

Bucket

Bucket specifications
Bucket Capacity - heaped1.50 yd³
Dump Clearance at Max Raise100 in
Bucket Width83 in
