John Deere

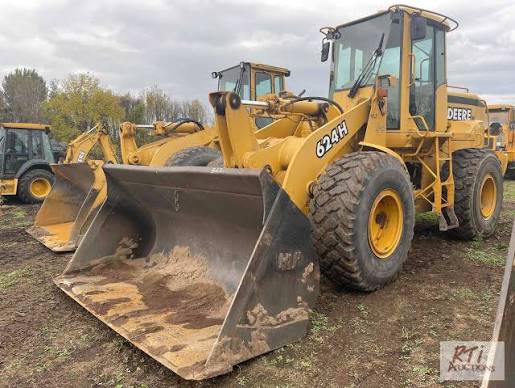

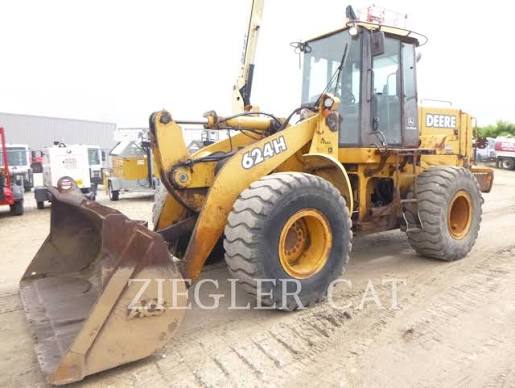

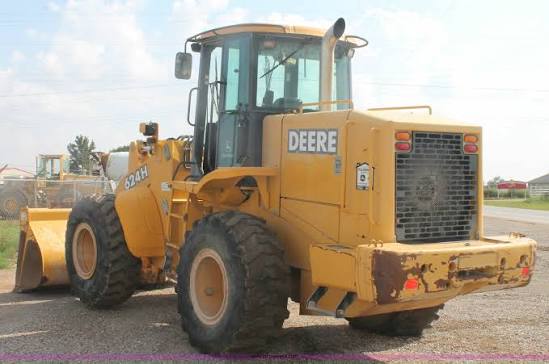

624H Waste Handler
- Operating Weight
- 38,859 lb
- Bucket Capacity - heaped
- 4.00 yd³
- Gross Power
- 172.0 hp
- Net Power
- 160.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 38,859 lb |
|---|---|
| Fuel Capacity | 70.0 gal |
| Tire Size | 20.5-25 |
| Hydraulic System Fluid Capacity | 31.0 gal |
| Static Tipping Weight | 23,860 lb |
| Operating Voltage | 24 V |
| Turning Radius | 205 in |
| Engine Oil Fluid Capacity | 5.3 gal |
| Rear Axle Oscillation | 18 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 7.4 gal |
| Rear Axle/Diff Fluid Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Transmission Fluid Capacity | 7.2 gal |
Engine
| Engine Model | 6068H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 172.0 hp |
| Net Power | 160.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharger with Aftercooler |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 55.0 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 3.0 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 3,600 psi |
| Pump Type | Piston Pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 120 in |
| Width Over Tires | 102 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket on Ground | 304 in |
| Hinge Pin - Max Height | 173 in |
Transmission
| Max Speed - Forward | 15.0 mph |
|---|---|
| Max Speed - Reverse | 16.0 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.00 yd³ |
|---|---|
| Bucket Capacity - struck | 3.10 yd³ |
| Dump Clearance at Max Raise | 134 in |
| Breakout Force | 30,312 lb |
| Bucket Width | 128 in |
