Caterpillar

IT28B

Wheel Loader

Operating Weight
23,325 lb
Bucket Capacity - heaped
2.30 yd³
Gross Power
110.0 hp
All wheel loaders

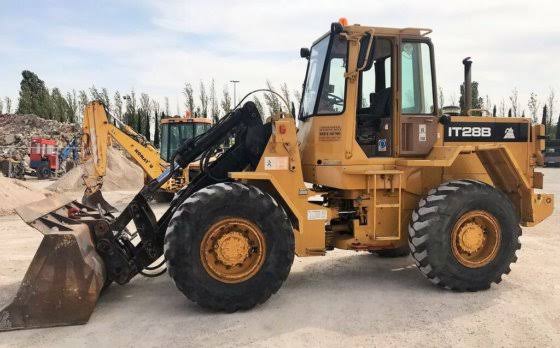

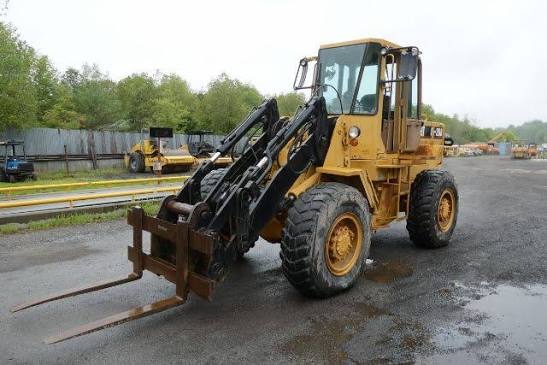

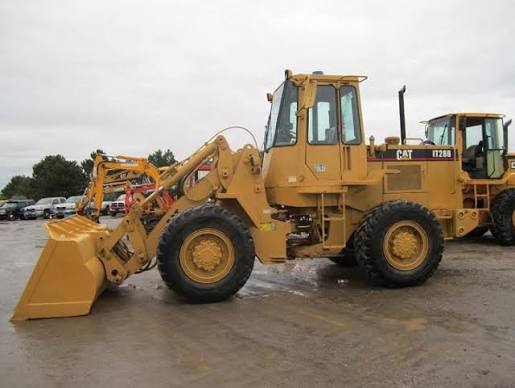

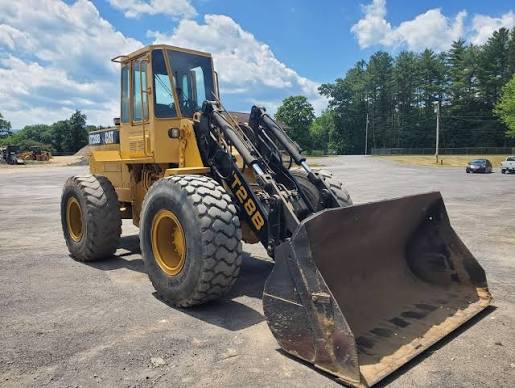

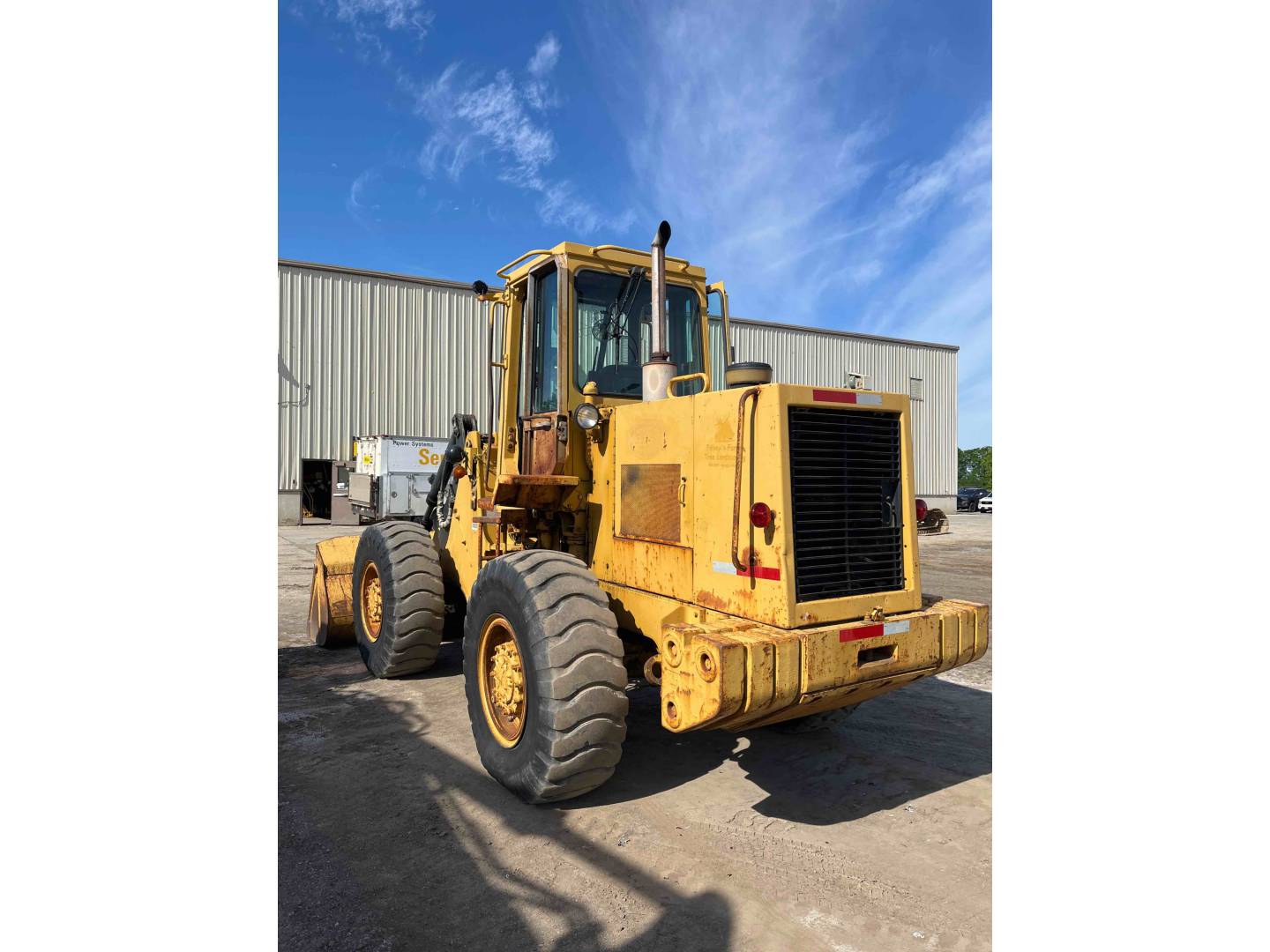

Caterpillar IT28B Wheel Loader
1 / 5
Image 1 of 5
Image: boomandbucket.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,325 lb
Tire Size17.5-25
Turning Radius220 in
Static Tipping Load - Bucket16,475 lb
Static Tipping Load - Forks13,166 lb
Static Tipping Load - Material Handler6,596 lb

Engine

Engine specifications
Engine Model3204
Displacement317 in³
Gross Power110.0 hp

Hydraulic System

Hydraulic System specifications
Raise Time6.1 s
Lower Time3.6 s
Dump Time1.8 s

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab126 in
Wheelbase114 in
Hinge Pin - Max Height150 in
Length w/ Bucket on Ground272 in
Dump Clearance at Max Lift108 in
Reach at Max Height and Dump43 in
Max Lift Height145 in
Fork Tine Length48 in
Length with out Forks on Ground283 in

Transmission

Transmission specifications
Max Speed - Forward34.4 mph
Max Speed - Reverse37.2 mph
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Bucket Capacity - struck2.00 yd³
Breakout Force23,050 lb
