John Deere

324K

Wheel Loader

Operating Weight
14,088 lb
Net Power
61.0 hp
All wheel loaders

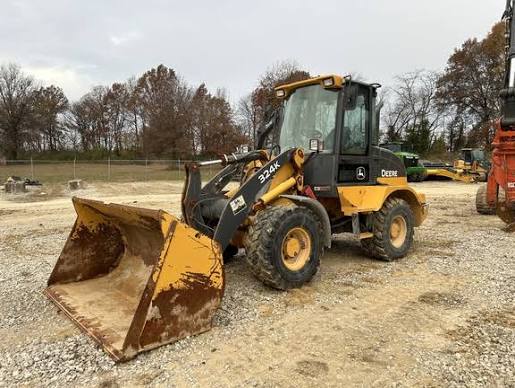

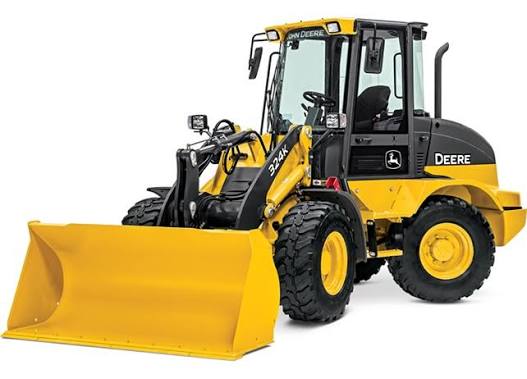

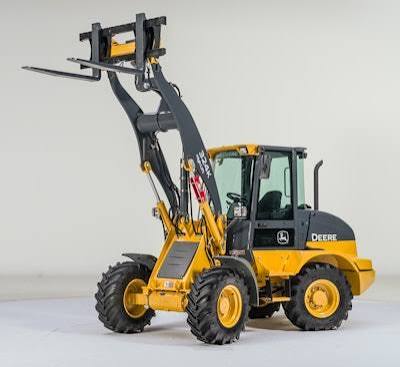

John Deere 324K Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,088 lb
Fuel Capacity21.4 gal
Tire Size405 / 70 R20
Front Axle/Diff Fluid Capacity2.0 gal
Rear Axle/Diff Fluid Capacity1.8 gal
Rated Bucket Capacity1.40 yd³

Engine

Engine specifications
Engine Model4TNC98CT
Displacement201 in³
Net Power61.0 hp
Engine MakeYANMAR
MakeYANMAR
Torque206 lb-ft
Alternator80 A
System Voltage12 V
Rated Speed2,400 rpm
Transmission TypeHydrostatic
Emission levelTier 4
PumpGear
Engine Output-Net70.0 hp

Weights

Weights specifications
Operating Weight14,087 lb

Dimensions

Dimensions specifications
Height - Top of Cab110 in
Wheelbase91 in
Width Over Tires84 in
Turning Circle330 in

Transmission

Transmission specifications
Pump Flow24.6 gal/min
System Pressure2,750 psi

Brakes & Steering

Brakes & Steering specifications
Service brakeAll Wheels
Parking brakeWet Disc
Brakes TypeWet Disc / Drum
ActuationHydraulic

Fluid Capacities

Fluid Capacities specifications
Hydraulic Tank21.2 gal
Transmission0.3 gal
Heaped Capacity1.50 yd³

Bucket

Bucket specifications
Bucket Capacity - Smallest1.50 yd³
Dump Clearance at Max Raise106 in
Breakout Force12,364 lb
Largest bucket capacity2.11 yd³

General Specifications

General Specifications specifications
Operating Weight14,087 (6,390) Starting 2016 Model Year
Bucket Capacity1.4 (1.1) Starting 2016 Model Year
Engine typeYANMAR 4TNC98CT Starting 2016 Model Year
Engine Power70 (52) Starting 2016 Model Year
Max Dump Height8.9 (2.7) Starting 2016 Model Year
