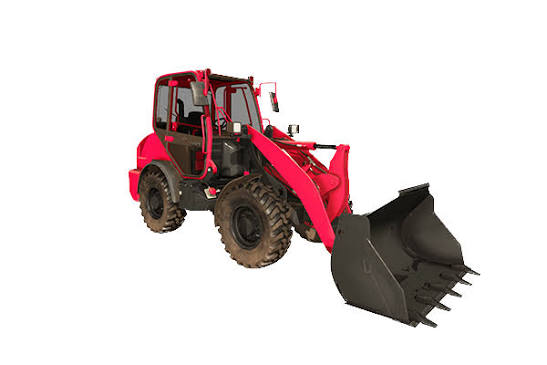

21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 8,708 lb |
|---|---|
| Fuel Capacity | 16.2 gal |
| Tire Size | Heavy Duty - 12.5/80-18 10-ply / Flotation 15-19.5 8-ply |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 6,790 lb |
| Operating Voltage | 12 V |
| Engine Oil Fluid Capacity | 2.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Cooling System Fluid Capacity | 1.2 gal |
Engine
| Engine Model | 404C-22 |
|---|---|
| Displacement | 136 in³ |
| Power Measured @ | 2,800 rpm |
| Gross Power | 51.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,800 rpm |
Hydraulic System
| Pump Flow Capacity | 15.9 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 4.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,336 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 102 in |
| Wheelbase | 79 in |
| Width Over Tires | 66 in |
| Reach at Max Lift and Dump | 15 in |
| Length with Bucket on Ground | 203 in |
| Hinge Pin - Max Height | 130 in |
Transmission
| Max Speed - Forward | 12.4 mph |
|---|---|
| Max Speed - Reverse | 12.4 mph |
| Transmission Type | Hydrostatic |
Bucket
| Bucket Capacity - heaped | 1.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 101 in |
| Breakout Force | 8,992 lb |
| Bucket Width | 72 in |
