Volvo
L30B
- Operating Weight
- 12,040 lb
- Bucket Capacity - heaped
- 1.50 yd³
- Gross Power
- 71.0 hp
- Net Power
- 68.0 hp
1 / 5

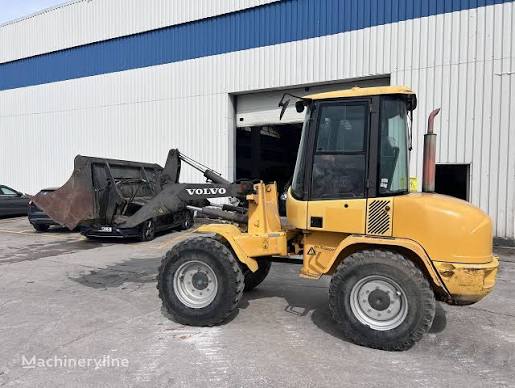

Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 12,040 lb |
|---|---|
| Fuel Capacity | 22.8 gal |
| Tire Size | 12.5-20 IND. SG |
| Hydraulic System Fluid Capacity | 17.2 gal |
| Static Tipping Weight | 9,700 lb |
| Operating Voltage | 12 V |
| Turning Radius | 80 in |
| Engine Oil Fluid Capacity | 2.8 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 3.0 gal |
| Rear Axle/Diff Fluid Capacity | 3.6 gal |
| Rated Bucket Capacity | 1.20 – 1.80 yd³ |
Engine
| Engine Model | D3DCDE2 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 71.0 hp |
| Net Power | 68.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,900 rpm |
| Make | Volvo |
Weights
| Operating Weight | 12,040 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 13.7 gal/min |
|---|---|
| Raise Time | 6.5 s |
| Lower Time | 3.5 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | Gear-type pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Wheelbase | 85 in |
| Width Over Tires | 70 in |
| Reach at Max Lift and Dump | 30 in |
| Length with Bucket on Ground | 207 in |
| Hinge Pin - Max Height | 127 in |
Transmission
| Max Speed - Forward | 11.5 mph |
|---|---|
| Max Speed - Reverse | 11.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 101 in |
| Breakout Force | 10,791 lb |
| Bucket Width | 76 in |
