Hitachi
Pel-Job
EL851

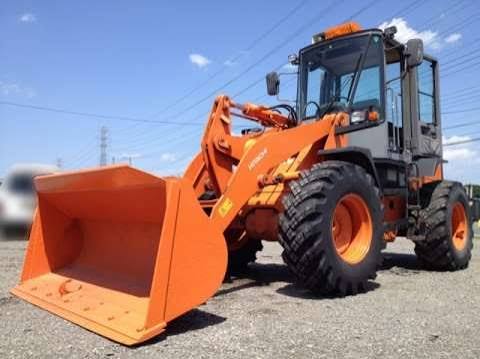

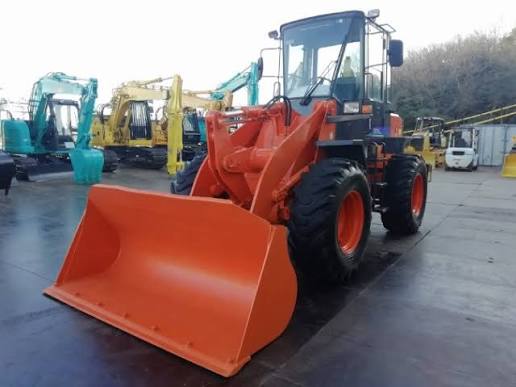

Wheel Loader
5 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 14,143 lb |
|---|---|
| Fuel Capacity | 34.4 gal |
| Tire Size | 15.5-25 / 8PR (L2) |
| Hydraulic System Fluid Capacity | 13.3 gal |
| Static Tipping Weight | 10,406 lb |
| Operating Voltage | 24 V |
| Turning Radius | 175 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 2.7 gal |
| Rear Axle/Diff Fluid Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 6.1 gal |
Engine
| Engine Model | BB-4BG1T |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 87.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharger |
Hydraulic System
| Pump Flow Capacity | 32.3 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 2,988 psi |
| Pump Type | Gear type |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 120 in |
| Wheelbase | 103 in |
| Width Over Tires | 86 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 240 in |
| Hinge Pin - Max Height | 138 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Two speed shift high -low speed selection -hydraulic clutch |
Bucket
| Bucket Capacity - heaped | 1.80 yd³ |
|---|---|
| Bucket Capacity - struck | 1.50 yd³ |
| Dump Clearance at Max Raise | 107 in |
| Breakout Force | 13,938 lb |
| Bucket Width | 93 in |
