John Deere

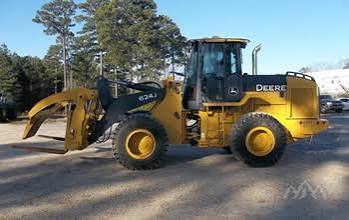

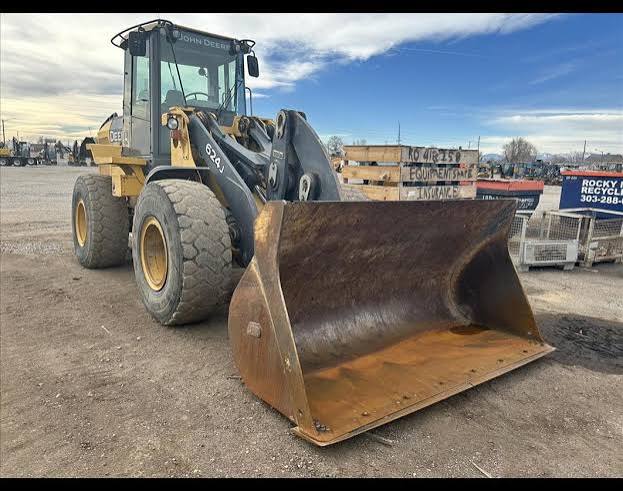

624J Powerllel w/ Coupler
- Operating Weight
- 35,297 lb
- Bucket Capacity - heaped
- 3.00 yd³
- Net Power
- 198.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 35,297 lb |
|---|---|
| Fuel Capacity | 93.0 gal |
| Tire Size | 20.5 R25 |
| Hydraulic System Fluid Capacity | 32.0 gal |
| Static Tipping Weight | 23,852 lb |
| Operating Voltage | 24 V |
| Turning Radius | 204 in |
| Engine Oil Fluid Capacity | 5.6 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Transmission Fluid Capacity | 6.1 gal |
Engine
| Engine Model | 6068H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 198.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged charge air cooled |
| Torque Measured @ | 1,600 rpm |
| Torque Rise | 55.0 % |
Hydraulic System
| Pump Flow Capacity | 60.0 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 2.8 s |
| Dump Time | 1.7 s |
| Relief Valve Setting | 3,675 psi |
| Pump Type | Variable axial piston |
Dimensions
| Ground Clearance | 205 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 120 in |
| Width Over Tires | 1,220 in |
| Length with Bucket on Ground | 309 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 24.6 mph |
|---|---|
| Max Speed - Reverse | 16.0 mph |
| Transmission Type | Automatic Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 25,870 lb |
| Bucket Width | 102 in |
