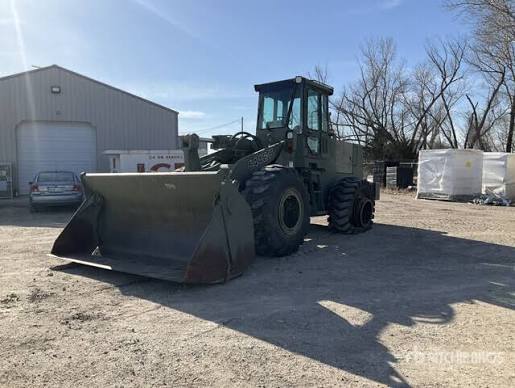

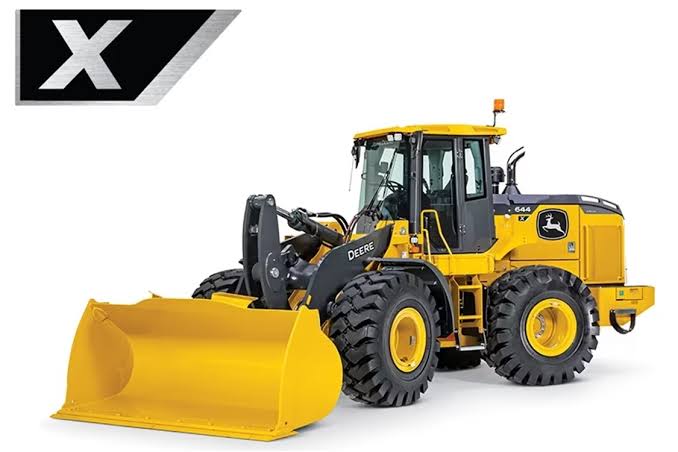

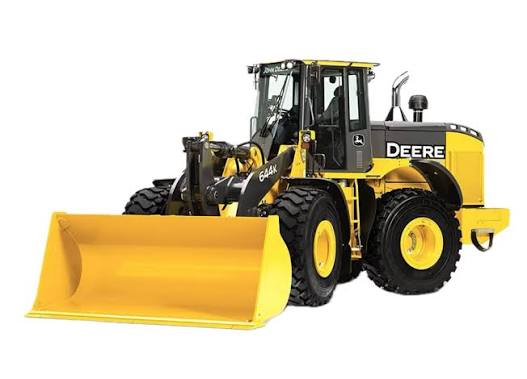

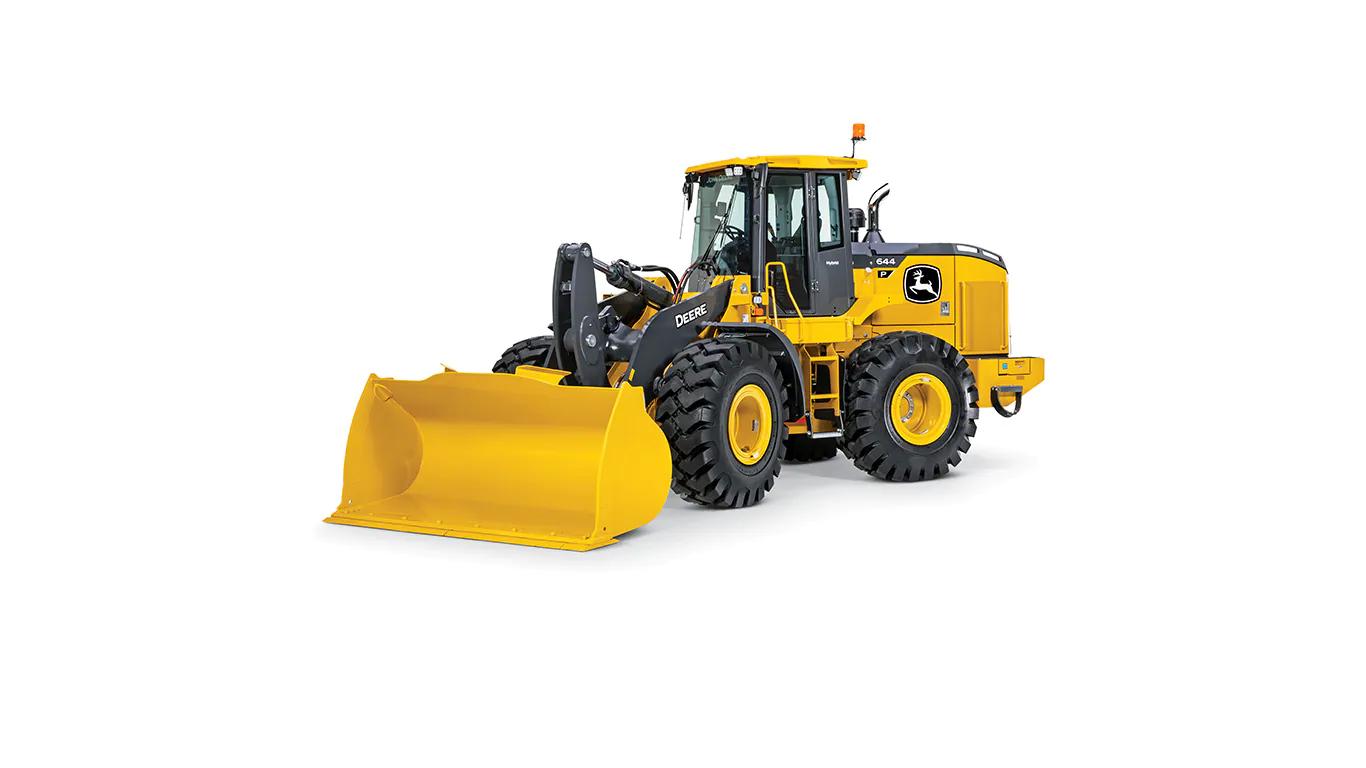

John Deere
644EH
- Operating Weight
- 35,306 lb
- Bucket Capacity - heaped
- 3.81 yd³
- Gross Power
- 193.0 hp
- Net Power
- 185.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 35,306 lb |
|---|---|
| Fuel Capacity | 75.0 gal |
| Tire Size | 20.5-25 |
| Hydraulic System Fluid Capacity | 30.4 gal |
| Static Tipping Weight | 29,435 lb |
| Operating Voltage | 12 V |
| Turning Radius | 214 in |
| Engine Oil Fluid Capacity | 6.4 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 6.1 gal |
| Rear Axle/Diff Fluid Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 7.6 gal |
| Transmission Fluid Capacity | 3.5 gal |
Engine
| Engine Model | 6076A |
|---|---|
| Displacement | 466 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 193.0 hp |
| Net Power | 185.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 65.5 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.5 s |
| Dump Time | 1.9 s |
| Relief Valve Setting | 2,850 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 126 in |
| Width Over Tires | 108 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 309 in |
| Hinge Pin - Max Height | 158 in |
Transmission
| Max Speed - Forward | 25.5 mph |
|---|---|
| Max Speed - Reverse | 16.4 mph |
| Transmission Type | Power Shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.81 yd³ |
|---|---|
| Bucket Capacity - struck | 3.20 yd³ |
| Dump Clearance at Max Raise | 115 in |
| Breakout Force | 34,257 lb |
| Bucket Width | 115 in |
