John Deere

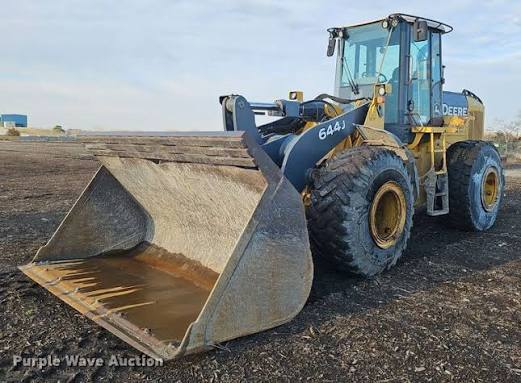

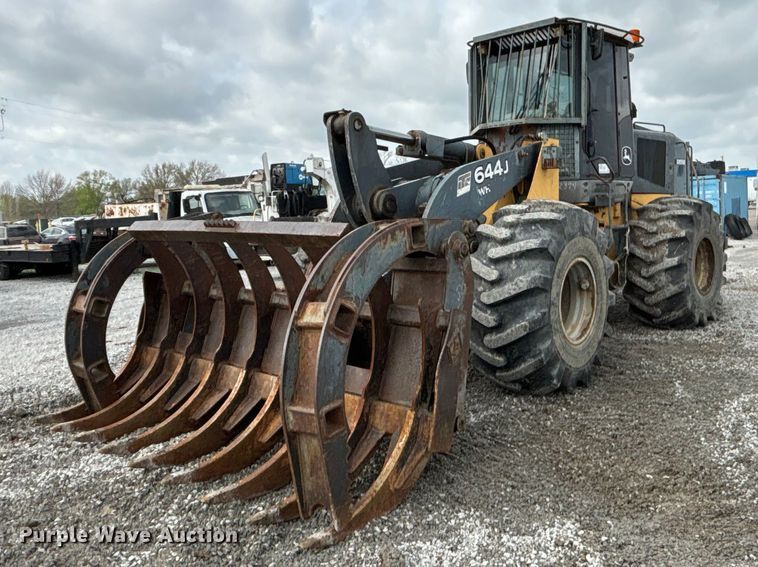

644J Powerllel w/QC & Fork
- Operating Weight
- 41,711 lb
- Bucket Capacity - heaped
- 4.00 yd³
- Net Power
- 185.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 41,711 lb |
|---|---|
| Fuel Capacity | 93.0 gal |
| Tire Size | 23.5 R25 |
| Hydraulic System Fluid Capacity | 31.0 gal |
| Static Tipping Weight | 22,595 lb |
| Operating Voltage | 24 V |
| Turning Radius | 216 in |
| Engine Oil Fluid Capacity | 6.5 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 7.8 gal |
| Transmission Fluid Capacity | 7.1 gal |
Engine
| Engine Model | 6068 H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 185.0 hp |
| Aspiration | turbocharged charge air cooled |
| Torque Rise | 55.0 % |
Hydraulic System
| Pump Flow Capacity | 76.0 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 2.8 s |
| Dump Time | 1.9 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | Variable axial piston |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 126 in |
| Width Over Tires | 109 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 354 in |
| Hinge Pin - Max Height | 161 in |
Transmission
| Max Speed - Forward | 22.0 mph |
|---|---|
| Max Speed - Reverse | 15.5 mph |
| Transmission Type | Automatic Powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.00 yd³ |
|---|---|
| Dump Clearance at Max Raise | 106 in |
| Breakout Force | 26,527 lb |
| Bucket Width | 118 in |
