John Deere
Liebherr
LR614

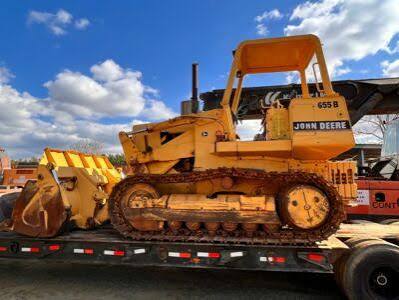

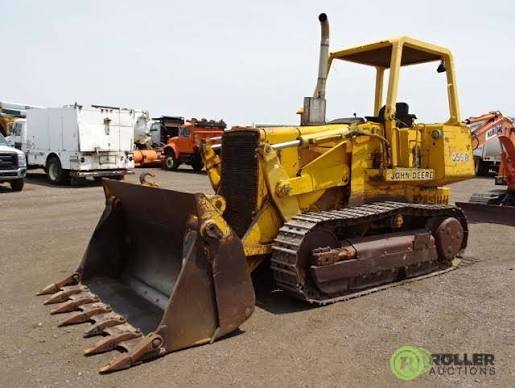

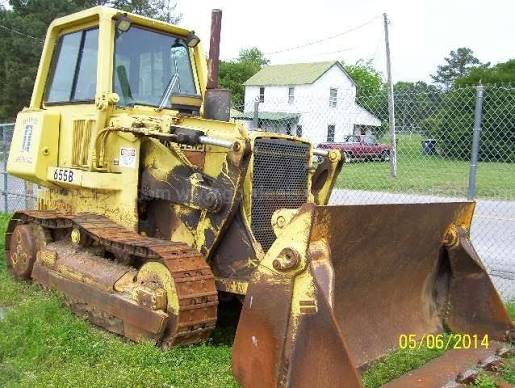

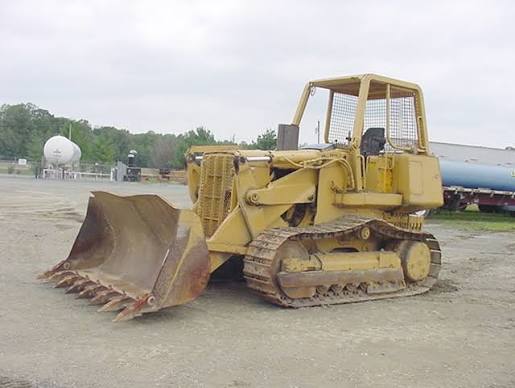

Crawler Loader
36 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 32,400 lb |
|---|---|
| Bucket Capacity - struck | 1.70 yd³ |
| Max Speed | 6.5 mph |
| Fuel Capacity | 73.0 gal |
| Static Tipping Load | 19,100 lb |
| Breakout Force Bucket | 24,800 lb |
| Cooling System Fluid Capacity | 7.0 gal |
| Hydraulic System Fluid Capacity | 37.0 gal |
| Final Drive Fluid Capacity - each | 3.5 gal |
| Engine Oil Capacity | 5.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 120.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 375 lb-ft |
Hydraulic System
| Pump Flow Capacity | 54.0 gal/min |
|---|---|
| Lower Time | 3.3 s |
| Raise Time | 5.9 s |
| Relief Valve Pressure | 2,250 psi |
| Dump Time | 1.3 s |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 168 in |
|---|---|
| Height - Top of Cab | 122 in |
| Width to Outside of Tracks | 85 in |
| Length with Bucket on Ground | 223 in |
| Clearance at Full Height and Dump | 111 in |
| Reach at Dump Height | 48 in |
| Length to Front of Track | 223 in |
Undercarriage
| Length of Track on Ground | 91 in |
|---|---|
| Track Gauge | 64 in |
| Track Shoe Width | 15 in |
| Ground Pressure | 12 psi |
| Number of Track Rollers per Side | 1 |
| Ground Contact Area | 2,724 in³ |
| Number of Shoes per Side | 40 |
