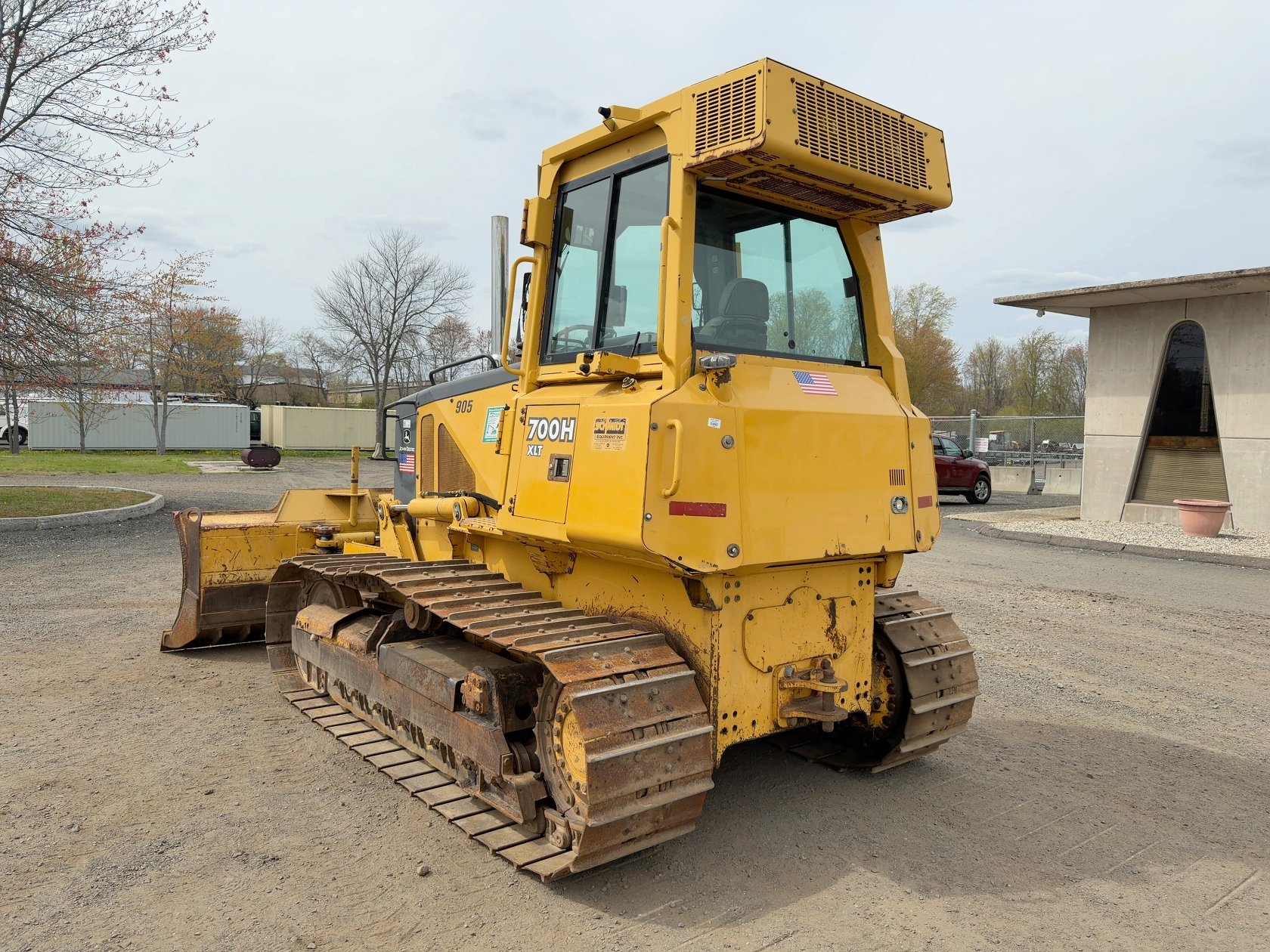

John Deere
700H XLT
- Operating Weight
- 26,790 lb
- Max Speed - Forward
- 5.5 mph
- Gross Power
- 123.0 hp
- Net Power
- 115.0 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 26,790 lb |
|---|---|
| Fuel Capacity | 60.0 gal |
| Cooling System Fluid Capacity | 5.6 gal |
| Final Drives Fluid Capacity | 3.5 gal |
| Engine Oil Capacity | 5.1 gal |
| Hydraulic Fluid Capacity | 13.5 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 A |
Engine
| Engine Model | PowerTech 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 123.0 hp |
| Net Power | 115.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 410 lb-ft |
Hydraulic System
| Pump Flow Capacity | 25.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,200 psi |
| Pump Type | Gear fixed-displacement pump |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 118 in |
| Length of Track on Ground | 103 in |
| Width Over Tracks | 93 in |
| Length w/o Blade | 189 in |
Transmission
| Max Speed - Forward | 5.5 mph |
|---|---|
| Max Speed - Reverse | 5.5 mph |
| Transmission Type | Dual-path electronic-controlled hydrostatic drive |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 42 |
| Ground Contact Area | 4,111 in³ |
| Track Pitch | 7 in |
Standard Blade
| Width | 120 in |
|---|---|
| Height | 39 in |
| Capacity | 3.51 yd³ |
| Blade Angle (both directions) | 25 ° |
