John Deere

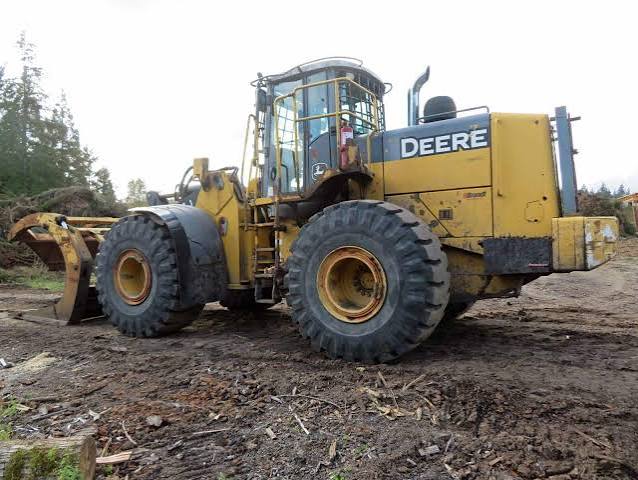

744J Waste Handler
- Operating Weight
- 66,086 lb
- Bucket Capacity - heaped
- 6.00 yd³
- Net Power
- 266.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 66,086 lb |
|---|---|
| Fuel Capacity | 122.0 gal |
| Tire Size | 31.5 - 25 |
| Hydraulic System Fluid Capacity | 38.0 gal |
| Static Tipping Weight | 47,099 lb |
| Operating Voltage | 24 V |
| Turning Radius | 243 in |
| Engine Oil Fluid Capacity | 10.1 gal |
| Rear Axle Oscillation | 16 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 13.0 gal |
| Rear Axle/Diff Fluid Capacity | 13.0 gal |
| Cooling System Fluid Capacity | 10.1 gal |
| Transmission Fluid Capacity | 7.4 gal |
Engine
| Engine Model | 6125H |
|---|---|
| Displacement | 766 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 266.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged charge air cooled |
| Torque Measured @ | 1,100 rpm |
| Torque Rise | 40.0 % |
Hydraulic System
| Pump Flow Capacity | 104.0 gal/min |
|---|---|
| Raise Time | 6.5 s |
| Lower Time | 3.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,200 psi |
| Pump Type | Variable axial piston |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 134 in |
| Width Over Tires | 126 in |
| Reach at Max Lift and Dump | 48 in |
| Length with Bucket on Ground | 335 in |
| Hinge Pin - Max Height | 170 in |
Transmission
| Max Speed - Forward | 13.1 mph |
|---|---|
| Max Speed - Reverse | 19.3 mph |
| Transmission Type | Automatic Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 6.00 yd³ |
|---|---|
| Bucket Capacity - struck | 5.30 yd³ |
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 32,691 lb |
| Bucket Width | 128 in |
