John Deere

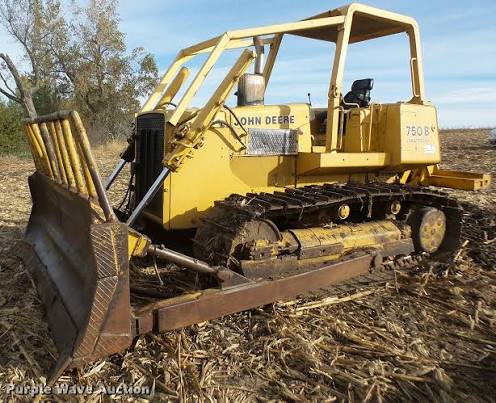

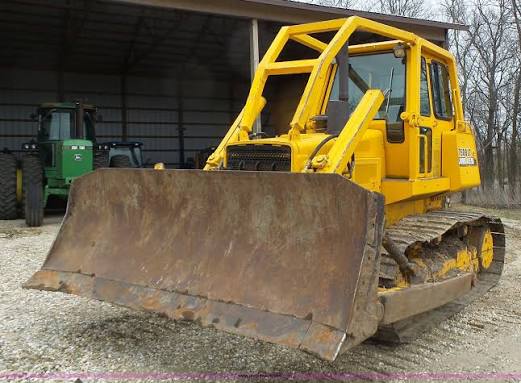

750B LT
- Operating Weight
- 31,530 lb
- Max Speed - Forward
- 6.5 mph
- Gross Power
- 148.0 hp
- Net Power
- 140.0 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 31,530 lb |
|---|---|
| Fuel Capacity | 73.0 gal |
| Cooling System Fluid Capacity | 7.0 gal |
| Final Drives Fluid Capacity | 8.5 gal |
| Hydraulic Fluid Capacity | 33.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 148.0 hp |
| Net Power | 140.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 420 lb-ft |
Hydraulic System
| Pump Flow Capacity | 38.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,000 psi |
| Pump Type | Vane |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 102 in |
Transmission
| Max Speed - Forward | 6.5 mph |
|---|---|
| Max Speed - Reverse | 6.5 mph |
| Transmission Type | Automatic dual-path hydrostatic drive |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Number of Track Rollers per Side | 2 |
| Number of Shoes per Side | 43 |
| Standard Shoe Size | 22 in |
| Ground Contact Area | 4,444 in³ |
Standard Blade
| Height | 42 in |
|---|---|
| Capacity | 3.00 yd³ |
