John Deere

750K

Crawler Dozer

Operating Weight
34,566 lb
Max Speed - Forward
6.0 mph
Net Power
165.0 hp
All crawler dozers

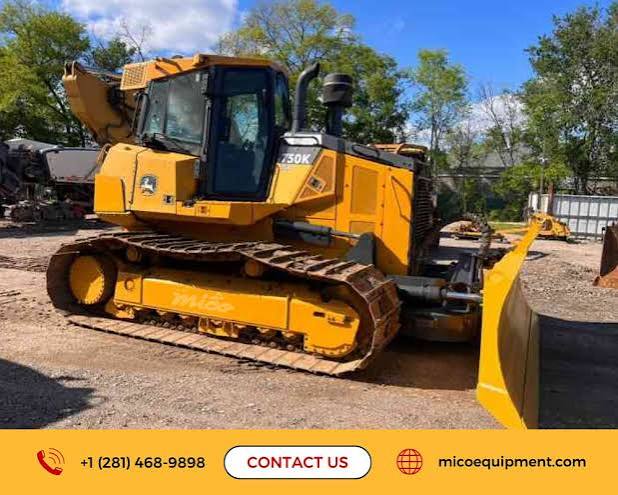

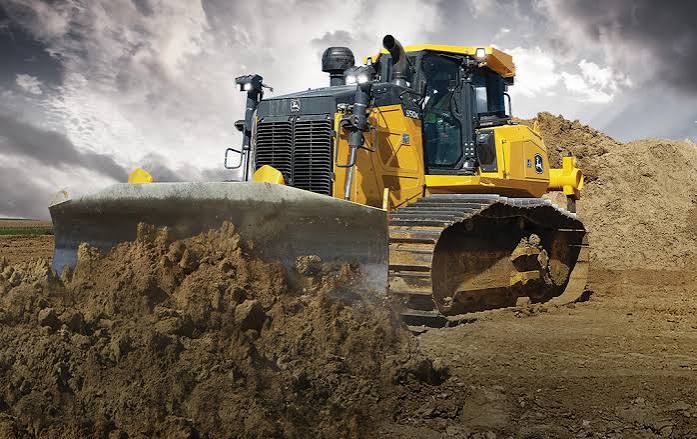

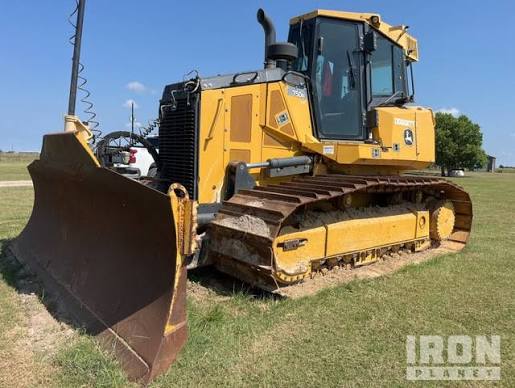

John Deere 750K Crawler Dozer
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,566 lb
Fuel Capacity97.3 gal
Hydraulic Fluid Capacity29.6 gal

Engine

Engine specifications
Engine ModelPowerTech PVS 6068
Displacement414 in³
Power Measured @1,800 rpm
Net Power165.0 hp
MakeJ. Deere PowerTech

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity36.5 gal/min
Relief Valve Pressure3,625 psi
Pump TypeVariable Displacement Piston

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab124 in
Length of Track on Ground103 in

Transmission

Transmission specifications
Max Speed - Forward6.0 mph
Max Speed - Reverse6.0 mph

Undercarriage

Undercarriage specifications
Track Gauge74 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Standard Shoe Size8 in
Ground Contact Area4,488 in³

General Specifications

General Specifications specifications
Weight lbs (kg)34,527-37,745 (15,661-17,121) Starting 2019 Model Year
Engine typeJohn Deere PowerTech PVS 6068 Starting 2019 Model Year
Engine Power HP (KW)165 (123) Starting 2019 Model Year

Standard Blade

Standard Blade specifications
Width128 in
