John Deere
7510
- Operating Weight
- 11,491 lb
- Displacement
- 415 in³
- Power Measured @
- 2,100 rpm
- Gross Power
- 135.5 hp
1 / 5

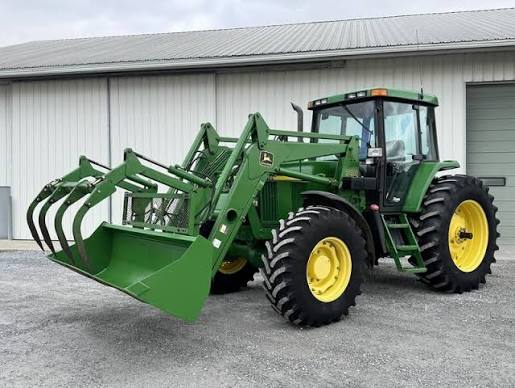

Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 11,491 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Oil System Fluid Capacity | 5.1 gal |
Engine
| Engine Model | PowerTech 6068 |
|---|---|
| Displacement | 415 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 135.5 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Max Torque | 395 lb-ft |
| Engine Make | John Deere |
| PTO Power | 115.4 hp |
| Stroke | 5 in |
| Bore | 4 in |
Hydraulic System
| Pump Flow Capacity | 25.9 gal/min |
|---|---|
| Number of Remote Control Valves | 2 |
| Maximum system pressure | 2,901 psi |
Dimensions
| Wheelbase | 113 in |
|---|---|
| Overall Length | 168 in |
| Overall Width | 96 in |
| Height - Top of ROPS/FOPS | 113 in |
Transmission
| Max Speed | 18.7 mph |
|---|---|
| Number of Forward Gears | 12 |
| Transmission Type | Manual / Synchronized |
| Number of Reverse Gears | 4 |
