Kubota

M108SHC

Tractor

Operating Weight
6,945 lb
Displacement
230 in³
Power Measured @
2,600 rpm
All tractors

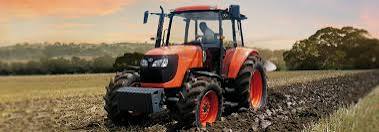

Kubota M108SHC Tractor
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,945 lb
Fuel Capacity46.3 gal
3 Point Hitch Lift Capacity @ 24 inches4,630 lb
Turning Radius150 in
Alternator Supplied Amperage80 A
Tire Size Front - 2wd / 4wd10.00-16

Engine

Engine specifications
Engine ModelV3800-DT-TI
Displacement230 in³
Power Measured @2,600 rpm
Net Power108.0 hp
Number of Cylinders4
Aspirationturbocharged w/ intercooler
PTO Power96.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.2 gal/min
Number of Remote Control Valves1

Dimensions

Dimensions specifications
Wheelbase96 in
Overall Length14 in
Overall Width91 in
Height - Top of ROPS/FOPS106 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission Typefully synchronized
Number of Reverse Gears16

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4-34
