John Deere

800C

Excavator

Operating Weight
168,540 lb
Max Digging Depth
354 in
Max Digging Depth
384 in
Net Power
454.0 hp
All excavators

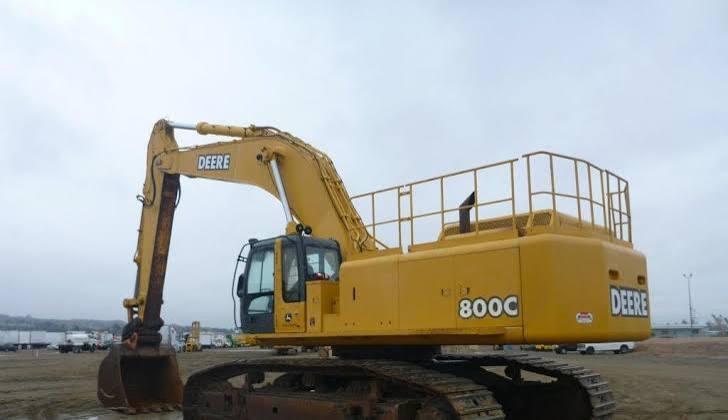

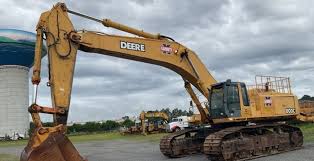

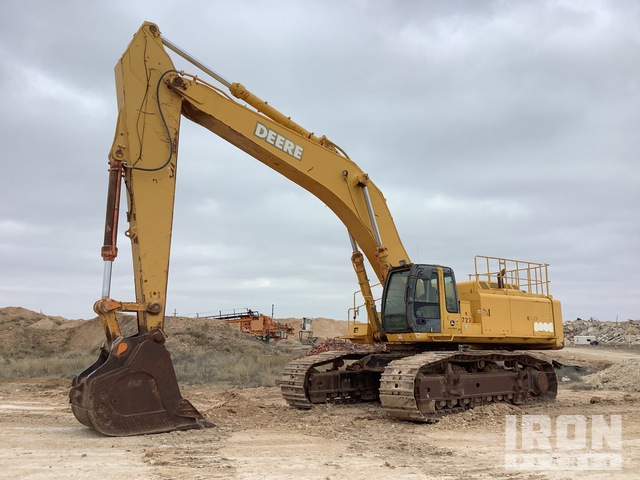

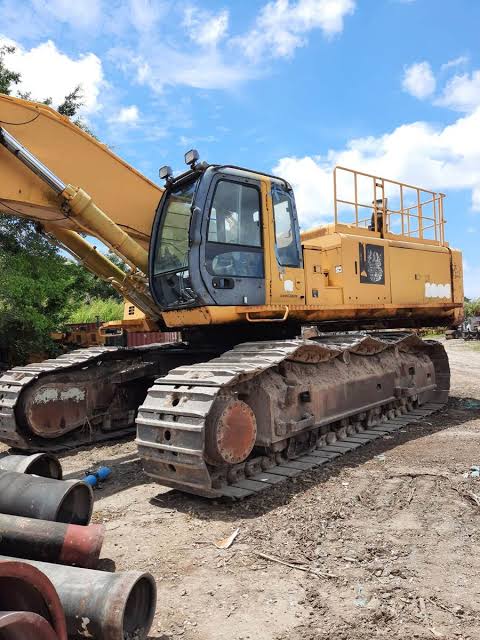

John Deere 800C Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

61 data points

Operating Specifications

Operating Specifications specifications
Operating Weight168,540 lb
Fuel Capacity238.0 gal
Hydraulic Pump Flow Capacity133.0 gal/min
Hydraulic System Fluid Capacity96.0 gal
Hydraulic System Relief Valve Pressure4,620 psi
Engine Oil Capacity13.0 gal
Cooling System Fluid Capacity17.5 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.3 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelBB-6WG1T
Displacement957 in³
Net Power454.0 hp
AspirationTurbocharged with cooler
Max Torque1,370 lb-ft

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab139 in
Length of Track on Ground202 in
Tail Swing Radius161 in
Width to Outside of Tracks173 in
Removal Counterweight Clearance64 in
Digging Depth348 in
Digging Reach348 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge137 in
Number of Track Rollers per Side9
Max Travel Speed2.7 mph
Shoe Size36 in
Number of Shoes per Side51
Number of Carrier Rollers per Side3
Drawbar Pull126,194 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth354 in
Max Reach Along Ground544 in
Max Loading Height340 in
Max Vertical Wall Digging Depth311 in
Max Cutting Height493 in
Shipping Length of Unit564 in
Shipping Height of Unit176 in

Bucket

Bucket specifications
Reference Bucket Capacity4.70 yd³
Maximum Bucket Capacity9.70 yd³
Minimum Bucket Capacity2.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth384 in
Max Vertical Wall Digging Depth356 in
Max Cutting Height524 in
Max Loading Height366 in
Max Reach Along Ground578 in
Shipping Length of Unit563 in
Shipping Height of Unit193 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth418 in
Max Cutting Height533 in
Max Loading Height386 in
Max Vertical Wall Digging Depth364 in
Max Reach Along Ground609 in
Shipping Length of Unit552 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth289 in
Max Cutting Height461 in
Max Reach Along Ground485 in
Max Loading Height318 in
Max Vertical Wall Dig Depth180 in
Shipping Length of Unit522 in
