John Deere

8370R

Tractor

Operating Weight
39,683 lb
Displacement
548 in³
Power Measured @
1,850 rpm
Gross Power
407.0 hp
All tractors

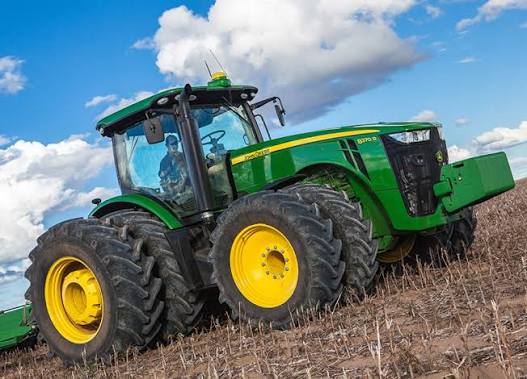

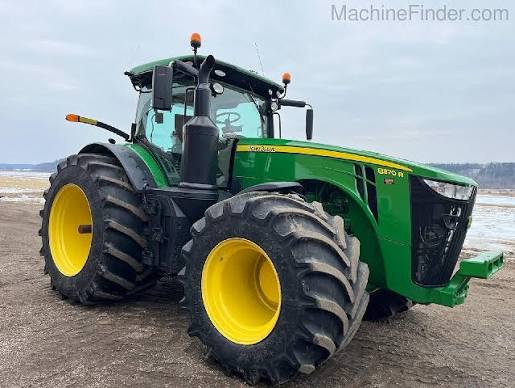

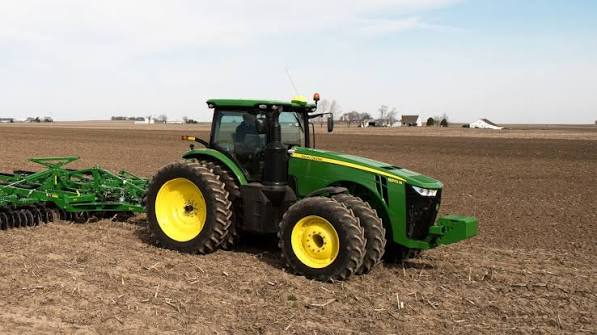

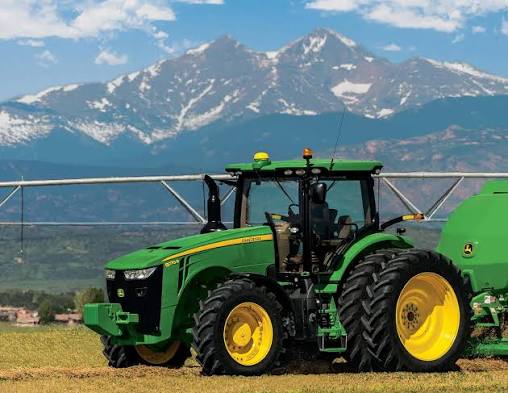

John Deere 8370R Tractor
1 / 5
Image 1 of 5
Image: afgri.com.au

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight39,683 lb
Fuel Capacity170.4 gal
3 Point Hitch Lift Capacity @ 24 inches26,450 lb
3 Point Hitch TypeIVN/III
Hydraulic System Fluid Capacity10.6 gal

Engine

Engine specifications
Engine ModelJohn Deere PowerTech PSS
Displacement548 in³
Power Measured @1,850 rpm
Gross Power407.0 hp
Net Power370.0 hp
Number of Cylinders6
PTO Power365.0 hp
Torque Rise43.6 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity34.4 gal/min

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab130 in
Wheelbase121 in
Overall Length21 in
Tire SizeFront: 380/80R38. Rear: 480/80R50

Transmission

Transmission specifications
Number of Forward Gears23
Transmission Typeinfinitely variable transmission (IVT)
Number of Reverse Gears11

Years of Manufacture

Years of Manufacture specifications
Approximate First Year of Manufacture2,014
Approximate Last Year of Manufacture2,014
