Massey Ferguson
Fendt
817
Tractor
23 specifications

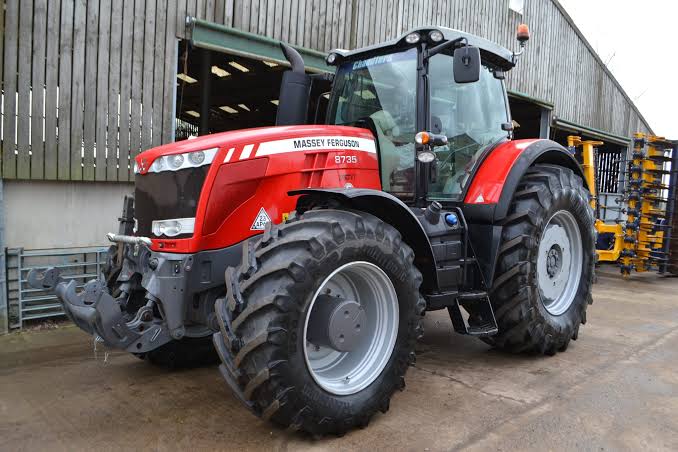

Massey Ferguson
8735
- Operating Weight
- 23,810 lb
- Displacement
- 513 in³
- Power Measured @
- 2,000 rpm
- Gross Power
- 350.1 hp
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 23,810 lb |
|---|---|
| Fuel Capacity | 166.5 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 10,970 lb |
| DEF tank capacity | 15.9 gal |
Engine
| Displacement | 513 in³ |
|---|---|
| Power Measured @ | 2,000 rpm |
| Gross Power | 350.1 hp |
| Number of Cylinders | 6 |
| Aspiration | Twin turbo chargers with eWastegate |
| PTO Power | 275.0 hp |
| Engine Type | AGCO Power 8.4L |
| Alternator | 240 A |
Hydraulic System
| Pump Flow Capacity | 54.2 gal/min |
|---|---|
| Number of Remote Control Valves | 4 |
| Hydraulic System Type | Closed center load sensing |
| system pressure | 2,900 psi |
Dimensions
| Height - Top of Cab | 142 in |
|---|---|
| Wheelbase | 122 in |
| Overall Length | 219 in |
Transmission
| Max Speed | 31.0 mph |
|---|---|
| Transmission Type | Dyna-VT with power management |
Production
| Series | 8700 Series |
|---|---|
| Years Manufactured | — |
