John Deere

843J

Feller Buncher

Operating Weight w/o Attachment
27,990 lb
Max Speed
12.5 mph
Displacement
414 in³
Gross Power
225.0 hp
All feller bunchers

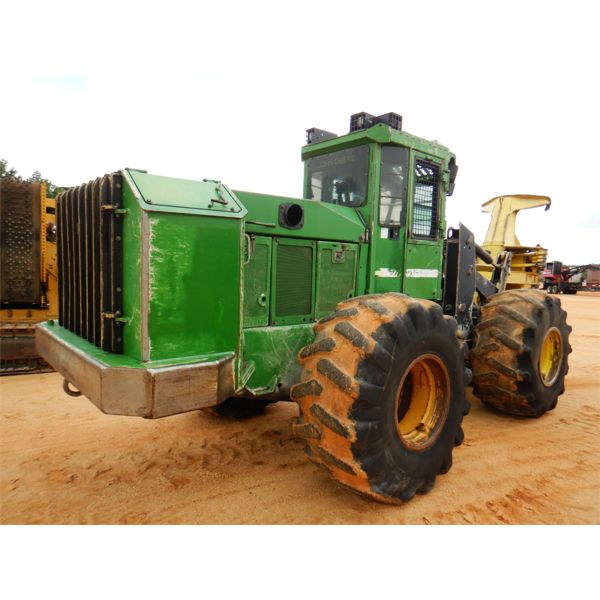

John Deere 843J Feller Buncher
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment27,990 lb
Max Speed12.5 mph
Fuel Capacity84.0 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Hydraulic System Fluid Capacity70.1 gal
Cooling System Fluid Capacity9.0 gal
Engine Oil Capacity7.2 gal
Tire Size28L-26
Ground Pressure11 psi
Steering Articulation90 °

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,200 rpm
Gross Power225.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm
Net Torque754 lb-ft

Dimensions

Dimensions specifications
Ground Clearance2 in
Height - Top of Cab128 in
Wheelbase110 in
Overall Length291 in
Overall Width119 in

Transmission

Transmission specifications
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2
