John Deere

9120 280 Engine hp

Tractor

Operating Weight
30,968 lb
Displacement
496 in³
Power Measured @
2,100 rpm
Gross Power
280.0 hp
All tractors

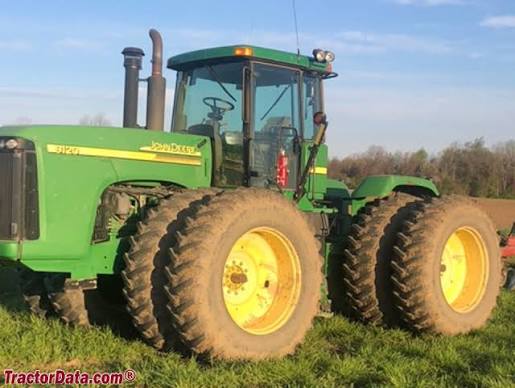

John Deere 9120 280 Engine hp Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,968 lb
Fuel Capacity270.0 gal
3 Point Hitch Lift Capacity @ 24 inches13,871 lb

Engine

Engine specifications
Displacement496 in³
Power Measured @2,100 rpm
Gross Power280.0 hp
Number of Cylinders6
AspirationTurbocharged and air-to-air aftercooled
PTO Power244.6 hp
Torque Rise28.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity33.0 gal/min
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Wheelbase138 in
Tire Size20.8R42

Transmission

Transmission specifications
Transmission Type24-speed powr-sync

Axles

Axles specifications
Final DriveInboard Planetary
