John Deere

9RT 510

Tractor

Operating Weight
44,910 lb
Power Measured @
2,100 rpm
Gross Power
490.0 hp
All tractors

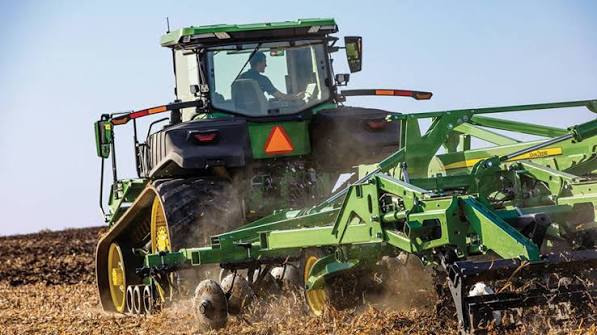

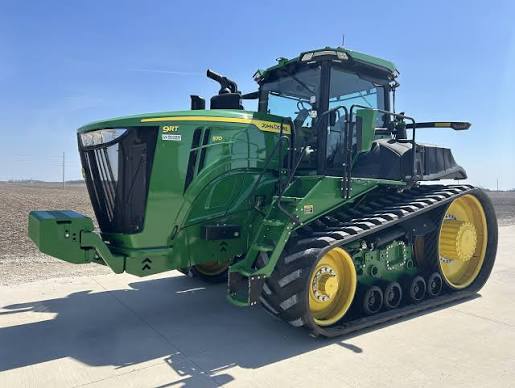

John Deere 9RT 510 Tractor
1 / 5
Image 1 of 5
Image: deere.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,910 lb
Fuel Capacity340.0 gal
Cooling System Fluid Capacity14.6 gal
Engine Oil Capacity12.7 gal

Engine

Engine specifications
Engine ModelPowerTech PSX
Power Measured @2,100 rpm
Gross Power490.0 hp
Net Power510.0 hp
Number of Cylinders6

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity48.0 gal/min
Number of Remote Control Valves43,561
Relief Valve Setting2,900 psi

Dimensions

Dimensions specifications
Ground Clearance16 in
Overall Length20 in
Overall Width135 in

Transmission

Transmission specifications
Max Speed24.7 mph
Number of Forward Gears18
Transmission TypeJohn Deere PowerShift
Number of Reverse Gears6
