Kawasaki

60ZV-2

Wheel Loader

Operating Weight
44,037 lb
Bucket Capacity - heaped
2.30 yd³
Gross Power
130.0 hp
Net Power
122.0 hp
All wheel loaders

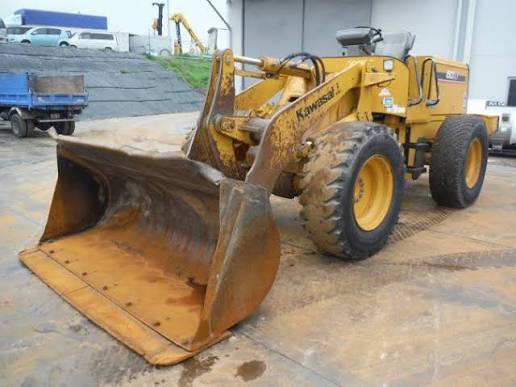

Kawasaki 60ZV-2 Wheel Loader
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,037 lb
Fuel Capacity46.3 gal
Tire Size15.5x25-12PR
Hydraulic System Fluid Capacity26.5 gal
Static Tipping Weight17,417 lb
Operating Voltage24 V
Turning Radius214 in
Engine Oil Fluid Capacity2.7 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity5.3 gal
Rear Axle/Diff Fluid Capacity5.3 gal
Cooling System Fluid Capacity6.7 gal
Transmission Fluid Capacity5.3 gal
Rated Bucket Capacity2.20 – 2.50 yd³

Engine

Engine specifications
Engine ModelQSB4.5
Displacement272 in³
Power Measured @2,200 rpm
Gross Power130.0 hp
Net Power122.0 hp
Number of Cylinders4
AspirationTurbocharger with Intercooler
Torque Measured @1,500 rpm
MakeCummins

Weights

Weights specifications
Operating Weight19,975 lb

Hydraulic System

Hydraulic System specifications
Raise Time6.0 s
Lower Time3.0 s
Dump Time1.2 s
Relief Valve Setting3,000 psi

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab124 in
Wheelbase107 in
Width Over Tires91 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground264 in
Hinge Pin - Max Height142 in

Transmission

Transmission specifications
Max Speed - Forward20.6 mph
Max Speed - Reverse20.6 mph
Transmission TypePower shift
Number of Forward Gears3
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Bucket Capacity - struck2.00 yd³
Dump Clearance at Max Raise108 in
Bucket Width97 in
