Kawasaki
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

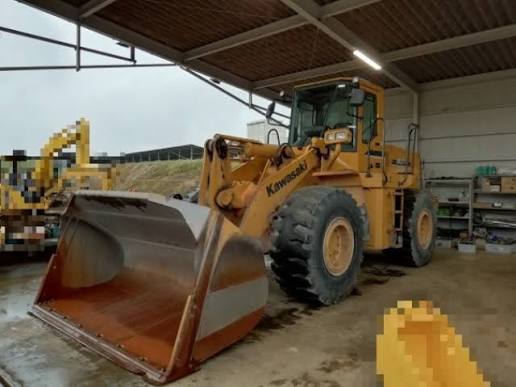

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 39,308 lb |
|---|---|
| Fuel Capacity | 76.7 gal |
| Tire Size | 23.5x25-16PR (L-3) |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Static Tipping Weight | 30,600 lb |
| Operating Voltage | 24 V |
| Turning Radius | 252 in |
| Engine Oil Fluid Capacity | 8.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 14.6 gal |
| Rear Axle/Diff Fluid Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 15.9 gal |
| Transmission Fluid Capacity | 11.9 gal |
| Rated Bucket Capacity | 4.20 yd³ |
Engine
| Engine Model | QSC8.3 |
|---|---|
| Displacement | 504 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 198.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,500 rpm |
| Make | Cummins |
Weights
| Operating Weight | 39,308 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 19.0 gal/min |
|---|---|
| Raise Time | 6.2 s |
| Lower Time | 3.4 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 126 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 316 in |
| Hinge Pin - Max Height | 162 in |
Transmission
| Max Speed - Forward | 22.9 mph |
|---|---|
| Max Speed - Reverse | 23.2 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.20 yd³ |
|---|---|
| Bucket Capacity - struck | 3.60 yd³ |
| Dump Clearance at Max Raise | 118 in |
| Breakout Force | 36,193 lb |
| Bucket Width | 110 in |
