Kawasaki

85ZV-2

Wheel Loader

Operating Weight
46,275 lb
Bucket Capacity - heaped
4.90 yd³
Gross Power
240.0 hp
Net Power
224.0 hp
All wheel loaders

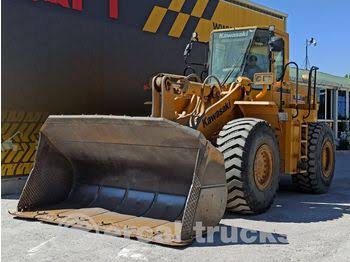

Kawasaki 85ZV-2 Wheel Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight46,275 lb
Fuel Capacity79.3 gal
Tire Size26.5x25-20PR (L-3)
Hydraulic System Fluid Capacity55.5 gal
Static Tipping Weight35,252 lb
Operating Voltage24 V
Turning Radius261 in
Engine Oil Fluid Capacity8.0 gal
Rear Axle Oscillation22 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity19.6 gal
Rear Axle/Diff Fluid Capacity21.2 gal
Cooling System Fluid Capacity15.9 gal
Transmission Fluid Capacity14.1 gal
Rated Bucket Capacity4.80 yd³

Engine

Engine specifications
Engine ModelQSC8.3
Displacement504 in³
Power Measured @1,500 rpm
Gross Power240.0 hp
Net Power224.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @2,200 rpm
MakeCummins

Weights

Weights specifications
Operating Weight46,275 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.1 gal/min
Raise Time6.3 s
Lower Time4.2 s
Dump Time1.3 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab139 in
Wheelbase131 in
Width Over Tires117 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground322 in
Hinge Pin - Max Height170 in

Transmission

Transmission specifications
Max Speed - Forward22.2 mph
Max Speed - Reverse22.7 mph
Transmission Typefull powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped4.90 yd³
Bucket Capacity - struck4.39 yd³
Dump Clearance at Max Raise126 in
Breakout Force40,680 lb
Bucket Width122 in
