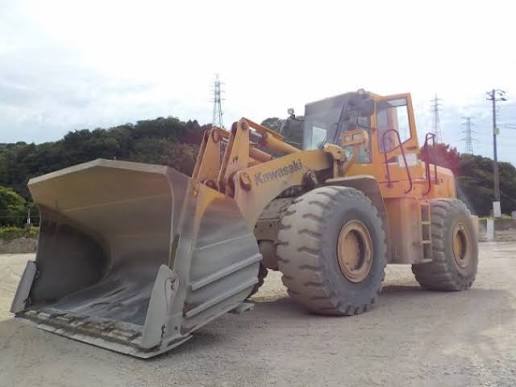

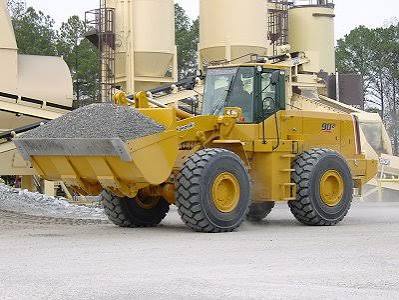

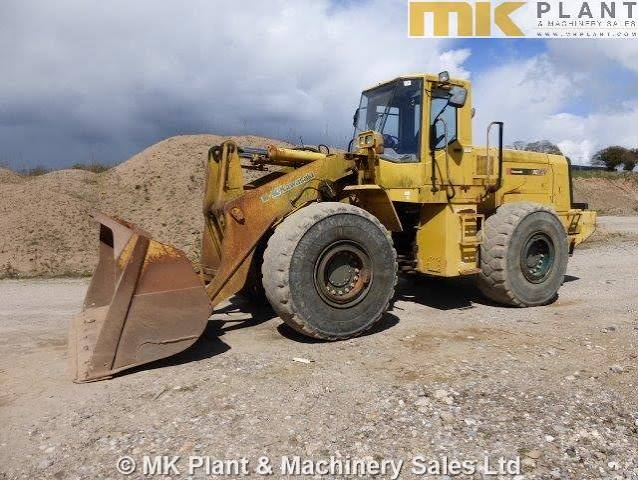

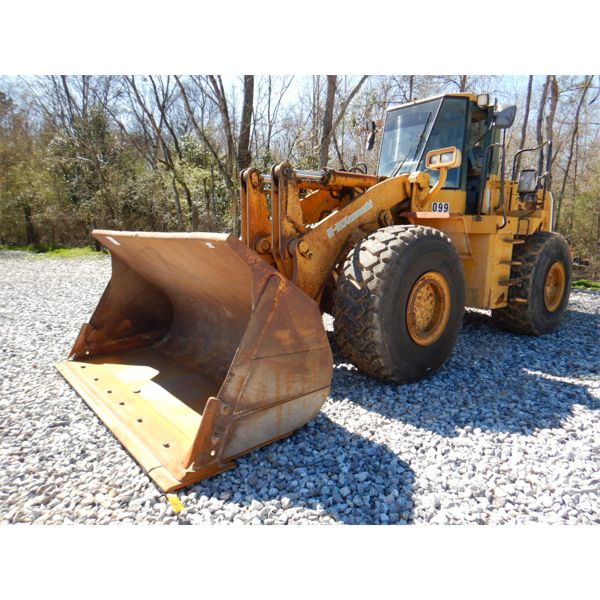

Kawasaki
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 51,324 lb |
|---|---|
| Fuel Capacity | 87.2 gal |
| Tire Size | 26.5x25-20PR (L-3) |
| Hydraulic System Fluid Capacity | 68.7 gal |
| Static Tipping Weight | 39,981 lb |
| Operating Voltage | 24 V |
| Turning Radius | 270 in |
| Engine Oil Fluid Capacity | 9.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 19.6 gal |
| Rear Axle/Diff Fluid Capacity | 21.2 gal |
| Cooling System Fluid Capacity | 15.9 gal |
| Transmission Fluid Capacity | 15.9 gal |
Engine
| Engine Model | QSM11 |
|---|---|
| Displacement | 660 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 275.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged & intercooler |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 37.8 gal/min |
|---|---|
| Raise Time | 6.1 s |
| Lower Time | 3.0 s |
| Dump Time | 1.6 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 139 in |
| Wheelbase | 134 in |
| Width Over Tires | 117 in |
| Reach at Max Lift and Dump | 47 in |
| Length with Bucket on Ground | 343 in |
| Hinge Pin - Max Height | 173 in |
Transmission
| Max Speed - Forward | 21.1 mph |
|---|---|
| Max Speed - Reverse | 21.7 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.30 yd³ |
|---|---|
| Bucket Capacity - struck | 4.50 yd³ |
| Dump Clearance at Max Raise | 124 in |
| Breakout Force | 46,300 lb |
| Bucket Width | 122 in |
