Kawasaki

95ZIV

Wheel Loader

Operating Weight
63,670 lb
Bucket Capacity - heaped
6.61 yd³
Net Power
315.0 hp
All wheel loaders

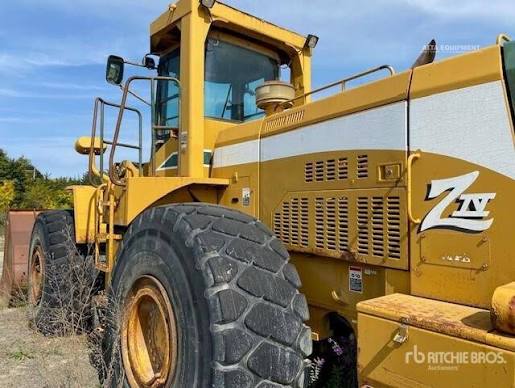

Kawasaki 95ZIV Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight63,670 lb
Fuel Capacity107.0 gal
Tire Size29.5x25-22PR
Hydraulic System Fluid Capacity68.7 gal
Static Tipping Weight48,678 lb
Operating Voltage24 V
Turning Radius287 in
Engine Oil Fluid Capacity11.4 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage75 A
Front Axle/Diff Fluid Capacity26.5 gal
Rear Axle/Diff Fluid Capacity26.5 gal
Cooling System Fluid Capacity22.5 gal
Transmission Fluid Capacity17.2 gal

Engine

Engine specifications
Engine ModelN14-C
Displacement855 in³
Power Measured @2,100 rpm
Net Power315.0 hp
Number of Cylinders6
Aspirationturbocharged & after cooled
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity50.0 gal/min
Raise Time7.0 s
Lower Time4.0 s
Dump Time1.5 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab152 in
Wheelbase141 in
Width Over Tires126 in
Reach at Max Lift and Dump54 in
Length with Bucket on Ground364 in
Hinge Pin - Max Height178 in

Transmission

Transmission specifications
Max Speed - Forward21.8 mph
Max Speed - Reverse14.6 mph
Transmission Typefull powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped6.61 yd³
Bucket Capacity - struck5.49 yd³
Dump Clearance at Max Raise127 in
Breakout Force54,670 lb
Bucket Width137 in
