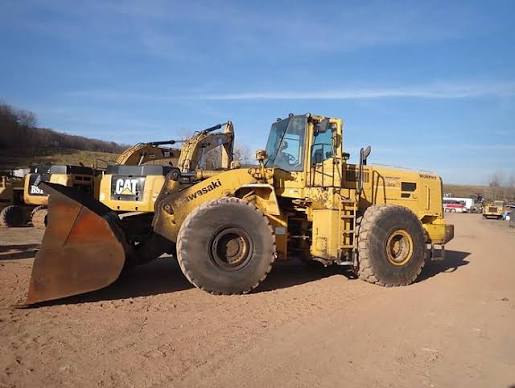

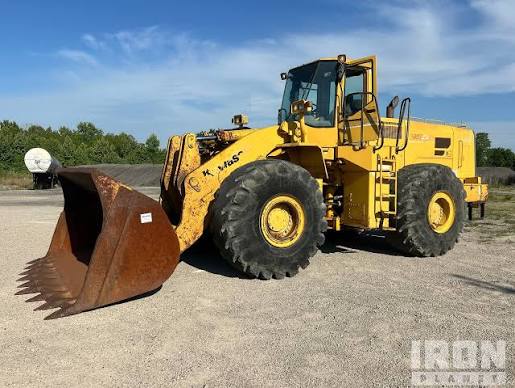

KawasakiZettelmeyer
ZL5001
Wheel Loader
35 specifications
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 66,315 lb |
|---|---|
| Fuel Capacity | 112.3 gal |
| Tire Size | 29.5x25-22PR (L-3) |
| Hydraulic System Fluid Capacity | 70.1 gal |
| Static Tipping Weight | 51,698 lb |
| Operating Voltage | 24 V |
| Turning Radius | 287 in |
| Engine Oil Fluid Capacity | 11.9 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 26.5 gal |
| Rear Axle/Diff Fluid Capacity | 26.5 gal |
| Cooling System Fluid Capacity | 25.4 gal |
| Transmission Fluid Capacity | 14.6 gal |
Engine
| Engine Model | QSX15 Tier 2 |
|---|---|
| Displacement | 917 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 340.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged & intercooler |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 53.4 gal/min |
|---|---|
| Raise Time | 6.7 s |
| Lower Time | 4.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,000 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 149 in |
| Wheelbase | 141 in |
| Width Over Tires | 127 in |
| Reach at Max Lift and Dump | 54 in |
| Length with Bucket on Ground | 366 in |
| Hinge Pin - Max Height | 178 in |
Transmission
| Max Speed - Forward | 21.1 mph |
|---|---|
| Max Speed - Reverse | 14.9 mph |
| Transmission Type | full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 7.10 yd³ |
|---|---|
| Bucket Capacity - struck | 5.79 yd³ |
| Dump Clearance at Max Raise | 127 in |
| Breakout Force | 55,125 lb |
| Bucket Width | 137 in |
