Kawasaki

95ZV-2

Wheel Loader

Operating Weight
68,170 lb
Bucket Capacity - heaped
7.10 yd³
Gross Power
390.0 hp
Net Power
348.0 hp
All wheel loaders

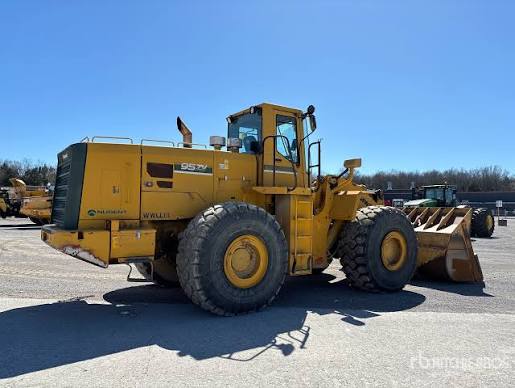

Kawasaki 95ZV-2 Wheel Loader
1 / 5
Image 1 of 5
Image: plantandequipment.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight68,170 lb
Fuel Capacity122.9 gal
Tire Size29.5x25-22PR (L-3)
Hydraulic System Fluid Capacity70.1 gal
Static Tipping Weight53,418 lb
Operating Voltage24 V
Turning Radius287 in
Engine Oil Fluid Capacity13.3 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage75 A
Front Axle/Diff Fluid Capacity26.5 gal
Rear Axle/Diff Fluid Capacity26.5 gal
Cooling System Fluid Capacity26.5 gal
Transmission Fluid Capacity17.2 gal
Rated Bucket Capacity7.00 yd³

Engine

Engine specifications
Engine ModelQSX15
Displacement917 in³
Power Measured @2,000 rpm
Gross Power390.0 hp
Net Power348.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,400 rpm
MakeCummins

Weights

Weights specifications
Operating Weight68,166 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity50.2 gal/min
Raise Time6.1 s
Lower Time4.0 s
Dump Time1.5 s
Relief Valve Setting3,000 psi
Pump Typegear type

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab149 in
Wheelbase143 in
Width Over Tires127 in
Reach at Max Lift and Dump54 in
Length with Bucket on Ground366 in
Hinge Pin - Max Height178 in

Transmission

Transmission specifications
Max Speed - Forward23.3 mph
Max Speed - Reverse16.2 mph
Transmission Typefull powershift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped7.10 yd³
Bucket Capacity - struck5.79 yd³
Dump Clearance at Max Raise127 in
Breakout Force55,120 lb
Bucket Width137 in
