Kobelco
Liugong
936E
Excavator
Specifications pending
1 / 5

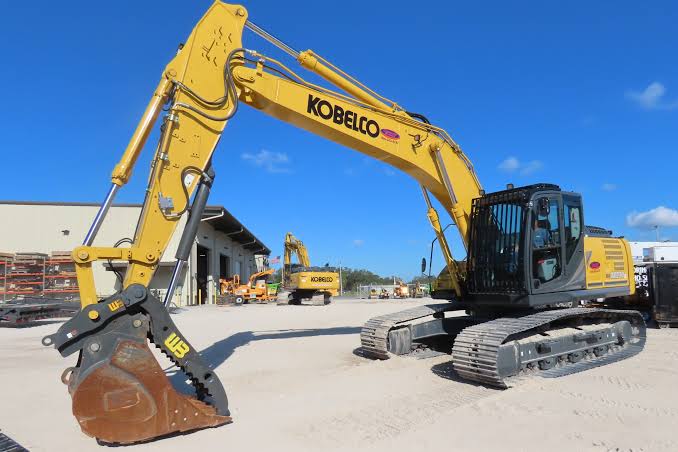

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Fuel Capacity | 97.8 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 116.3 gal/min |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Hydraulic System Relief Valve Pressure | 4,970 psi |
| Engine Oil Capacity | 5.3 gal |
| Cooling System Fluid Capacity | 6.9 gal |
Engine
| Engine Model | F4GE9684E-J6 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 150.0 hp |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 145 in |
| Tail Swing Radius | 109 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 42 in |
| Digging Depth | 264 in |
| Digging Reach | 264 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 95 in |
| Max Travel Speed | 3.8 mph |
| Shoe Size | 32 in |
| Drawbar Pull | 51,500 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 264 in |
|---|---|
| Max Reach Along Ground | 384 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 241 in |
| Max Cutting Height | 384 in |
| Shipping Length of Unit | 373 in |
| Shipping Height of Unit | 120 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 287 in |
|---|---|
| Max Vertical Wall Digging Depth | 256 in |
| Max Cutting Height | 384 in |
| Max Loading Height | 275 in |
| Max Reach Along Ground | 401 in |
| Shipping Length of Unit | 376 in |
| Shipping Height of Unit | 126 in |
