Kobelco
Liugong
936E
Excavator
Specifications pending
1 / 5

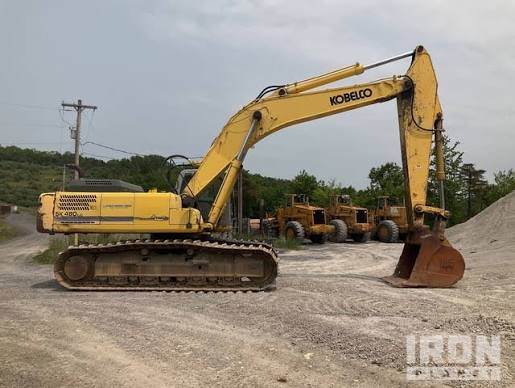

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Fuel Capacity | 171.8 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 203.5 gal/min |
| Hydraulic System Fluid Capacity | 174.4 gal |
| Hydraulic System Relief Valve Pressure | 3,700 psi |
| Engine Oil Capacity | 13.0 gal |
| Cooling System Fluid Capacity | 12.7 gal |
Engine
| Engine Model | 6D24-TLA2B |
|---|---|
| Displacement | 729 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 315.0 hp |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 131 in |
| Length of Track on Ground | 174 in |
| Tail Swing Radius | 144 in |
| Width to Outside of Tracks | 144 in |
| Removal Counterweight Clearance | 54 in |
| Digging Depth | 307 in |
| Digging Reach | 307 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 109 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 36 in |
| Drawbar Pull | 90,598 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 307 in |
|---|---|
| Max Reach Along Ground | 467 in |
| Max Loading Height | 300 in |
| Max Vertical Wall Digging Depth | 275 in |
| Max Cutting Height | 432 in |
| Shipping Length of Unit | 473 in |
| Shipping Height of Unit | 139 in |
Bucket
| Reference Bucket Capacity | 2.39 yd³ |
|---|---|
| Maximum Bucket Capacity | 4.00 yd³ |
| Minimum Bucket Capacity | 1.50 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 331 in |
|---|---|
| Max Vertical Wall Digging Depth | 293 in |
| Max Cutting Height | 437 in |
| Max Loading Height | 306 in |
| Max Reach Along Ground | 489 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 365 in |
|---|---|
| Max Cutting Height | 462 in |
| Max Loading Height | 328 in |
| Max Vertical Wall Digging Depth | 331 in |
| Max Reach Along Ground | 523 in |
