Kobelco

SK55SR-5

Mini Excavator

Operating Weight
11,288 lb
Max Digging Depth
142 in
Net Power
39.3 hp
All mini excavators

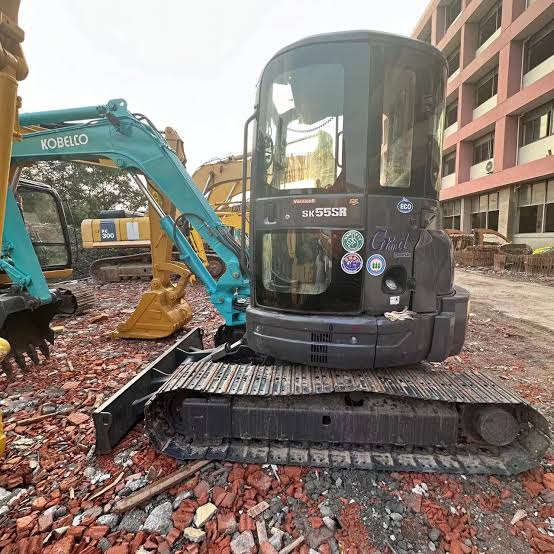

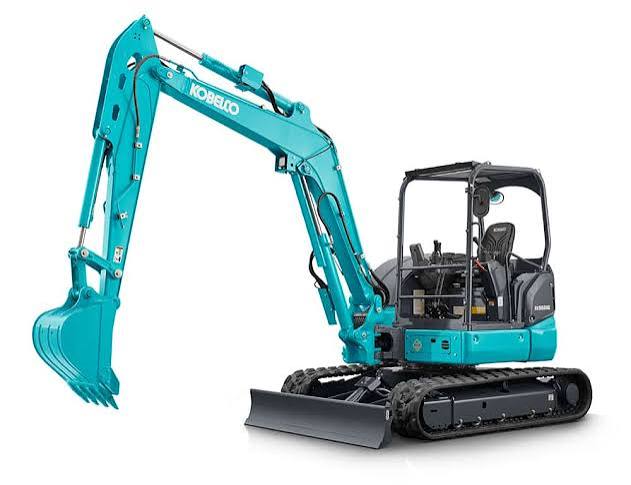

Kobelco SK55SR-5 Mini Excavator
1 / 5
Image 1 of 5
Image: farmersequip.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,288 lb
Hydraulic Pump Flow Capacity35.7 gal/min
Hydraulic System Relief Valve Pressure3,336 psi

Engine

Engine specifications
Engine Model4TNV88
Displacement133 in³
Power Measured @2,400 rpm
Net Power39.3 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius43 in
Width to Outside of Tracks78 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth142 in
Max Reach Along Ground227 in
Max Vertical Wall Digging Depth111 in
Max Loading Height145 in
Shipping Length of Unit206 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
