Komatsu

D10S-1

Crawler Loader

Operating Weight
3,902 lb
Bucket Capacity - heaped
0.41 yd³
Net Power
20.0 hp
All crawler loaders

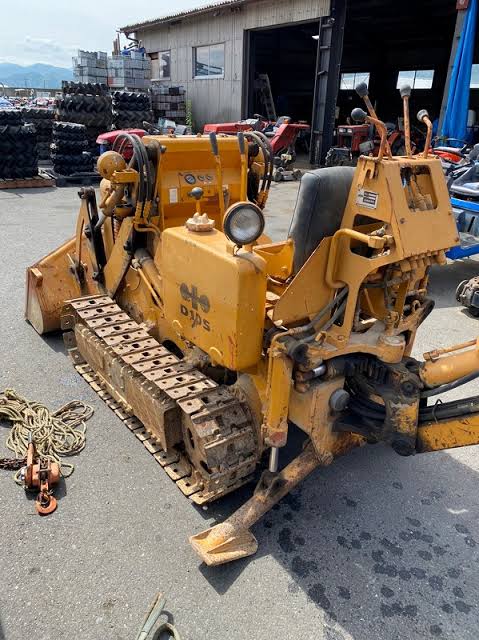

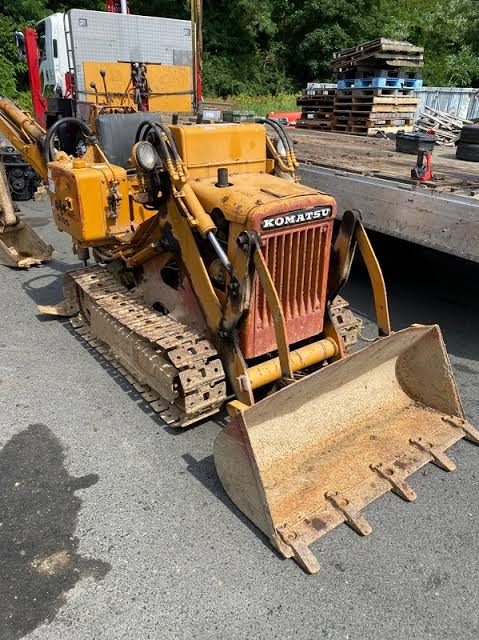

Komatsu D10S-1 Crawler Loader
1 / 5
Image 1 of 5
Image: truck1-us.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,902 lb
Bucket Capacity - heaped0.41 yd³
Max Speed2.8 mph
Fuel Capacity8.0 gal
Static Tipping Load3,130 lb
Breakout Force Bucket4,450 lb
Cooling System Fluid Capacity2.0 gal

Engine

Engine specifications
Engine Model2D92
Displacement79 in³
Net Power20.0 hp

Dimensions

Dimensions specifications
Width to Outside of Tracks46 in
Length with Bucket on Ground101 in
Clearance at Full Height and Dump66 in
Reach at Dump Height25 in

Undercarriage

Undercarriage specifications
Length of Track on Ground47 in
Track Gauge37 in
Track Shoe Width9 in
Ground Pressure5 psi
Number of Track Rollers per Side3
