Komatsu

D10S-2

Crawler Loader

Operating Weight
4,277 lb
Bucket Capacity - heaped
0.41 yd³
Net Power
21.0 hp
All crawler loaders

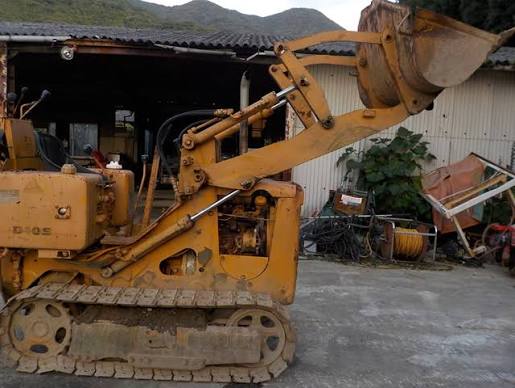

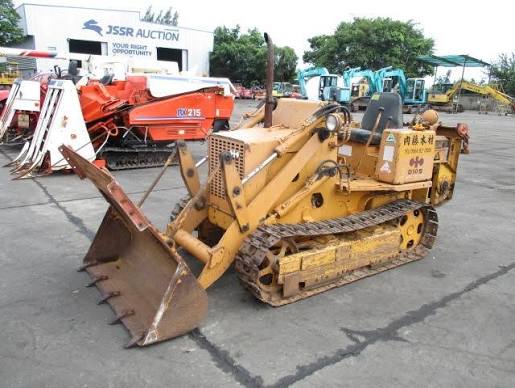

Komatsu D10S-2 Crawler Loader
1 / 5
Image 1 of 5
Image: heavy-spec.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,277 lb
Bucket Capacity - heaped0.41 yd³
Max Speed2.9 mph
Fuel Capacity11.4 gal
Static Tipping Load2,650 lb
Breakout Force Bucket3,280 lb
Cooling System Fluid Capacity2.1 gal

Engine

Engine specifications
Engine Model2D94
Displacement90 in³
Net Power21.0 hp

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Width to Outside of Tracks54 in
Length with Bucket on Ground115 in
Reach at Dump Height24 in
Clearance at Full Height and Dump70 in

Undercarriage

Undercarriage specifications
Length of Track on Ground59 in
Track Gauge42 in
Track Shoe Width10 in
Ground Pressure4 psi
Number of Track Rollers per Side4
