Komatsu

D135A-2

Crawler Dozer

Operating Weight
65,698 lb
Gross Power
289.0 hp
All crawler dozers

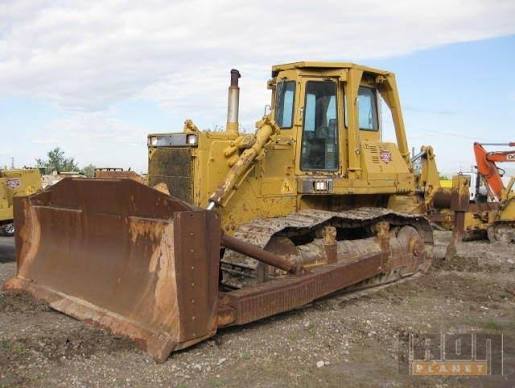

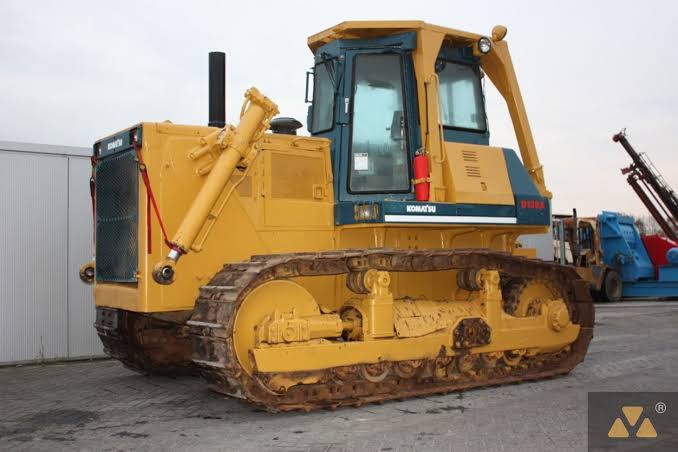

Komatsu D135A-2 Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight65,698 lb

Engine

Engine specifications
Engine ModelS6D140
Displacement930 in³
Power Measured @2,000 rpm
Gross Power289.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab138 in
Length of Track on Ground122 in
Width Over Tracks110 in
Length w/ Blade315 in
Length w/o Blade196 in

Transmission

Transmission specifications
Transmission TypePS
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge83 in
Number of Track Rollers per Side7
Number of Shoes per Side40
Number of Carrier Rollers per Side2
Standard Shoe Size22 in
Track Pitch9 in

Standard Blade

Standard Blade specifications
Width163 in
Height59 in
