KomatsuKomatsu
D87E-3
Crawler Dozer
41 specifications

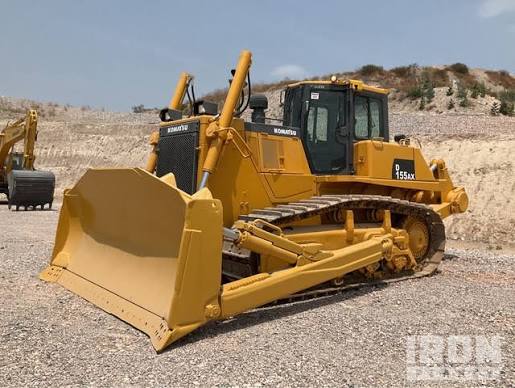

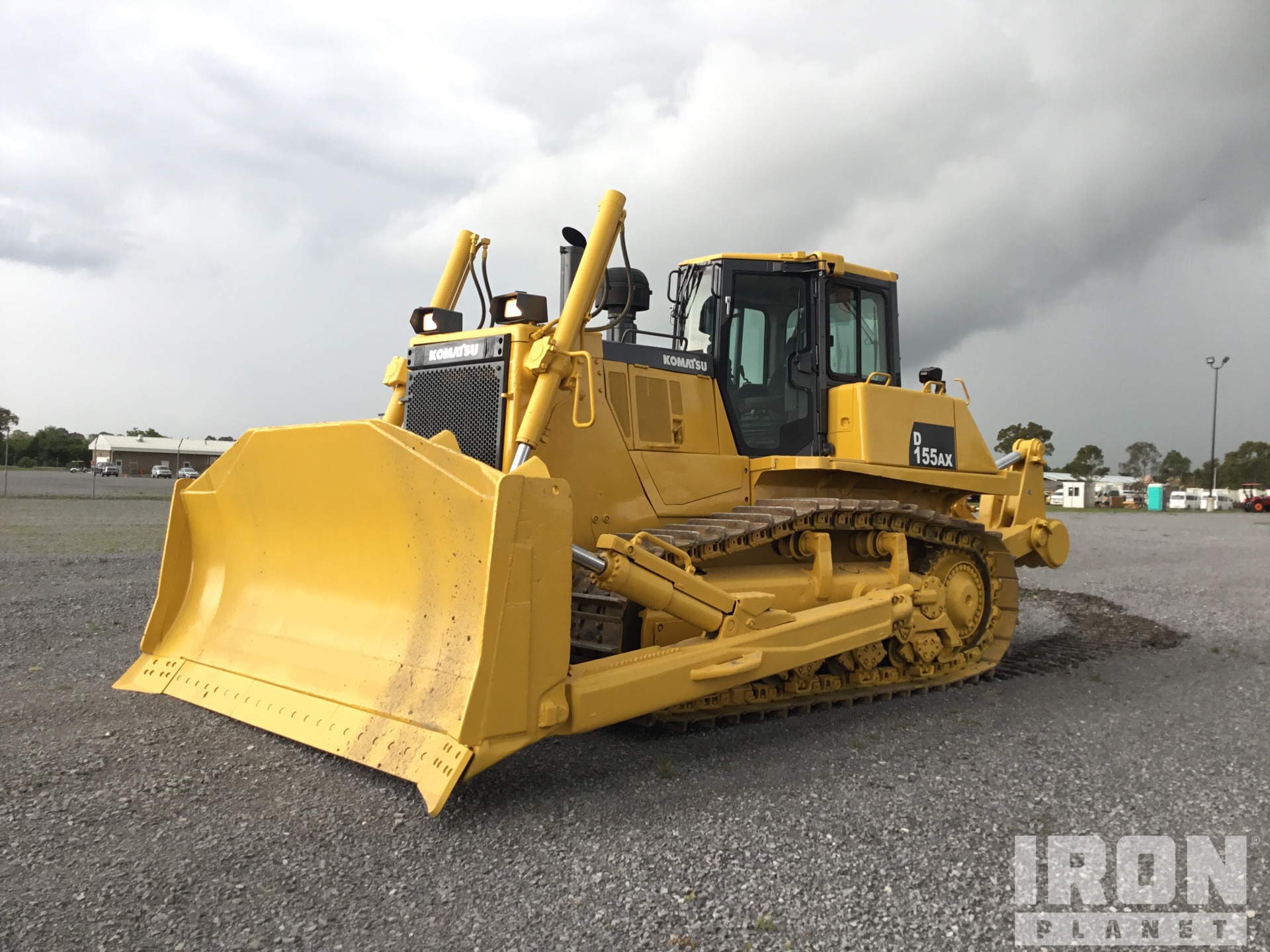

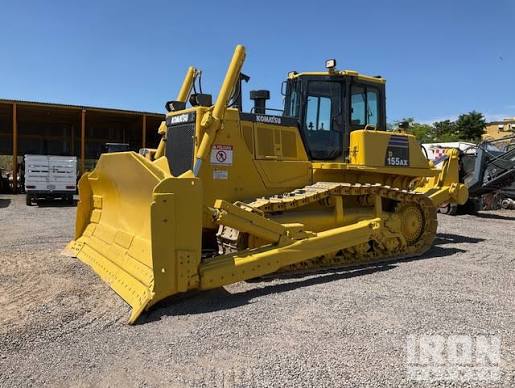

Komatsu
D155AX-6
- Operating Weight
- 87,100 lb
- Max Speed - Forward
- 7.2 mph
- Gross Power
- 360.0 hp
- Net Power
- 354.0 hp
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 87,100 lb |
|---|---|
| Fuel Capacity | 165.0 gal |
| Cooling System Fluid Capacity | 21.7 gal |
| Final Drives Fluid Capacity | 8.2 gal |
| Engine Oil Capacity | 9.8 gal |
Engine
| Engine Model | SAA6D140E-5 |
|---|---|
| Displacement | 930 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 360.0 hp |
| Net Power | 354.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged air-to-air aftercooled cooled EGR |
| Make | Komatsu |
Hydraulic System
| Pump Type | double-acting piston |
|---|
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 134 in |
| Length of Track on Ground | 130 in |
| Track Gauge | 85 in |
Transmission
| Max Speed - Forward | 7.2 mph |
|---|---|
| Max Speed - Reverse | 8.7 mph |
| Transmission Type | Komatsu TORQFLOW transmission |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 12 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 42 |
| Standard Shoe Size | 22 in |
| Ground Contact Area | 5,685 in³ |
Standard Blade
| Width | 161 in |
|---|---|
| Height | 6 in |
