Komatsu

D155S-1

Crawler Loader

Operating Weight
92,150 lb
Bucket Capacity - heaped
5.90 yd³
Net Power
350.0 hp
All crawler loaders

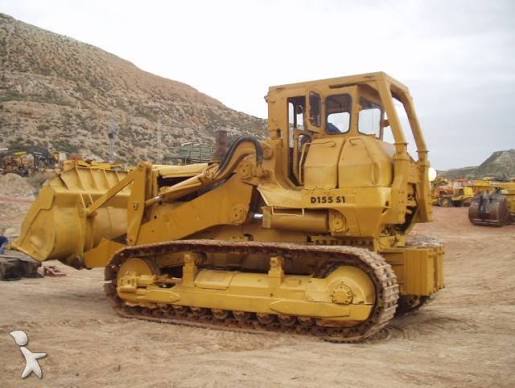

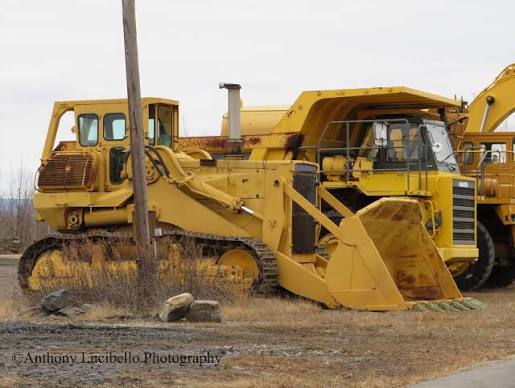

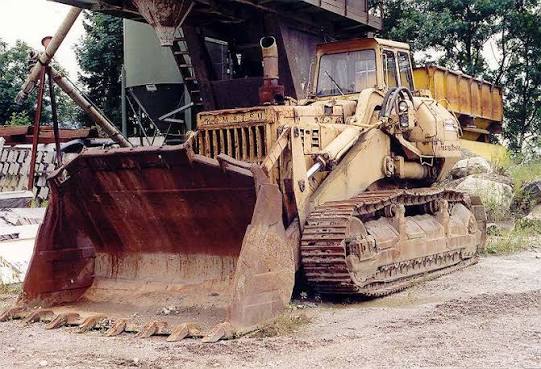

Komatsu D155S-1 Crawler Loader
1 / 5
Image 1 of 5
Image: makana.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight92,150 lb
Bucket Capacity - heaped5.90 yd³
Max Speed6.5 mph
Fuel Capacity171.8 gal
Static Tipping Load62,170 lb
Breakout Force Bucket59,920 lb
Cooling System Fluid Capacity42.3 gal

Engine

Engine specifications
Engine ModelS6D155-4
Displacement1,175 in³
Net Power350.0 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Lower Time3.1 s
Raise Time8.0 s

Dimensions

Dimensions specifications
Height - Top of Cab154 in
Width to Outside of Tracks120 in
Length with Bucket on Ground305 in
Clearance at Full Height and Dump146 in
Reach at Dump Height62 in

Undercarriage

Undercarriage specifications
Length of Track on Ground143 in
Track Gauge94 in
