Komatsu
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
1 / 5

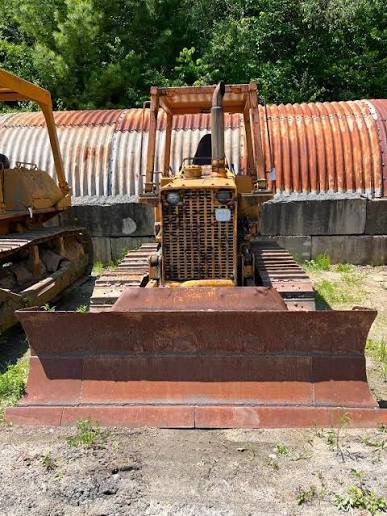

Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 14,771 lb |
|---|---|
| Fuel Capacity | 30.4 gal |
| Cooling System Fluid Capacity | 5.9 gal |
Engine
| Engine Model | 4D 105-3 |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,350 rpm |
| Gross Power | 63.0 hp |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 104 in |
| Length of Track on Ground | 86 in |
| Width Over Tracks | 81 in |
| Length w/ Blade | 152 in |
| Length w/o Blade | 120 in |
Transmission
| Max Speed - Forward | 4.1 mph |
|---|---|
| Max Speed - Reverse | 4.5 mph |
| Transmission Type | HS |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 3 psi |
|---|---|
| Track Gauge | 57 in |
| Number of Track Rollers per Side | 6 |
| Standard Shoe Size | 24 in |
Standard Blade
| Width | 98 in |
|---|---|
| Height | 31 in |
| Capacity | 2.00 yd³ |
