Komatsu

D375A-1

Crawler Dozer

Operating Weight
124,098 lb
Gross Power
515.0 hp
All crawler dozers

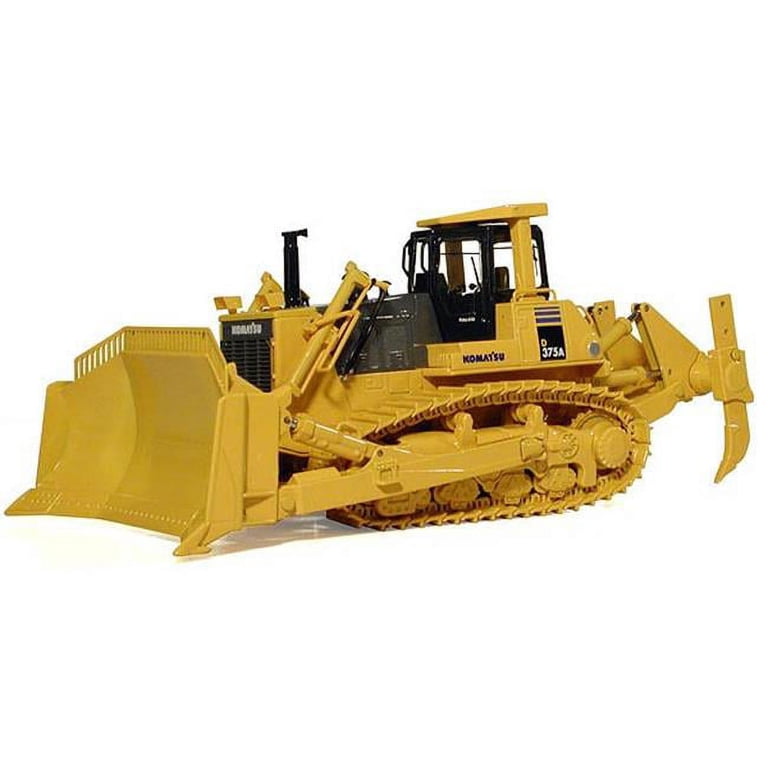

Komatsu D375A-1 Crawler Dozer
1 / 5
Image 1 of 5
Image: walmart.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight124,098 lb

Engine

Engine specifications
Engine ModelSA6D170B
Displacement1,413 in³
Power Measured @1,800 rpm
Gross Power515.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance25 in
Height - Top of Cab172 in
Length of Track on Ground148 in
Width Over Tracks130 in
Length w/ Blade388 in
Length w/o Blade244 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge100 in
Number of Track Rollers per Side8
Number of Shoes per Side42
Number of Carrier Rollers per Side2
Standard Shoe Size24 in
Track Pitch10 in

Standard Blade

Standard Blade specifications
Width181 in
Height83 in
