Komatsu

D37EX-22

Crawler Dozer

Operating Weight
18,298 lb
Max Speed - Forward
5.3 mph
Gross Power
80.0 hp
Net Power
78.0 hp
All crawler dozers

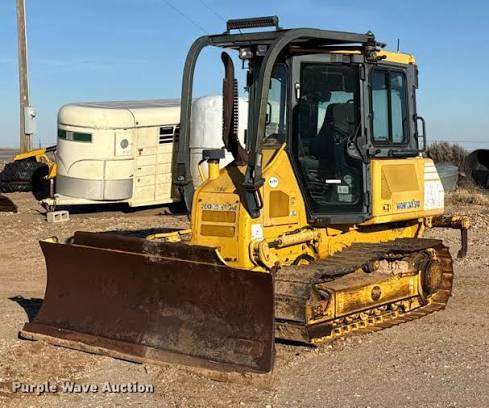

Komatsu D37EX-22 Crawler Dozer
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,298 lb

Engine

Engine specifications
Engine ModelSAA4D95LE-5
Displacement199 in³
Power Measured @2,200 rpm
Gross Power80.0 hp
Net Power78.0 hp
Number of Cylinders4
AspirationTurbocharged air-to-air aftercooled
MakeKomatsu
Stroke5 in
Bore4 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity26.2 gal/min
Relief Valve Pressure3,983 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab109 in
Length of Track on Ground86 in
Width Over Tracks76 in
Length w/ Blade165 in

Transmission

Transmission specifications
Max Speed - Forward5.3 mph
Max Speed - Reverse5.3 mph
Transmission Typedual-path hydrostatic
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge60 in
Standard Shoe Size16 in
Ground Contact Area3 in³

Standard Blade

Standard Blade specifications
Width101 in
Height33 in
Capacity2.20 yd³
Blade Angle (both directions)25 °
