Komatsu

D40PL-1

Crawler Dozer

Operating Weight
23,810 lb
Gross Power
80.0 hp
All crawler dozers

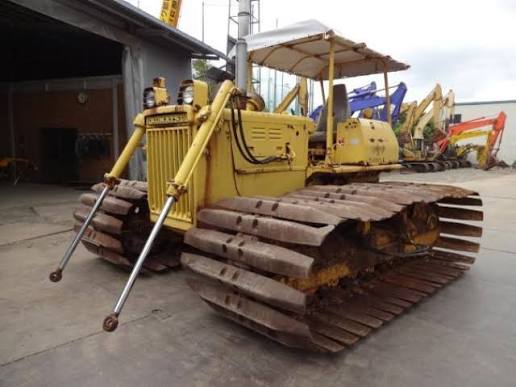

Komatsu D40PL-1 Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,810 lb

Engine

Engine specifications
Engine ModelS4D105-3
Displacement264 in³
Power Measured @2,400 rpm
Gross Power80.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab103 in
Length of Track on Ground102 in
Width Over Tracks138 in
Length w/ Blade185 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears4
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge90 in
Number of Track Rollers per Side6
Number of Shoes per Side43
Number of Carrier Rollers per Side1
Standard Shoe Size48 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width159 in
Height23 in
