D3K LGP
Crawler Dozer
35 specifications
1 / 5

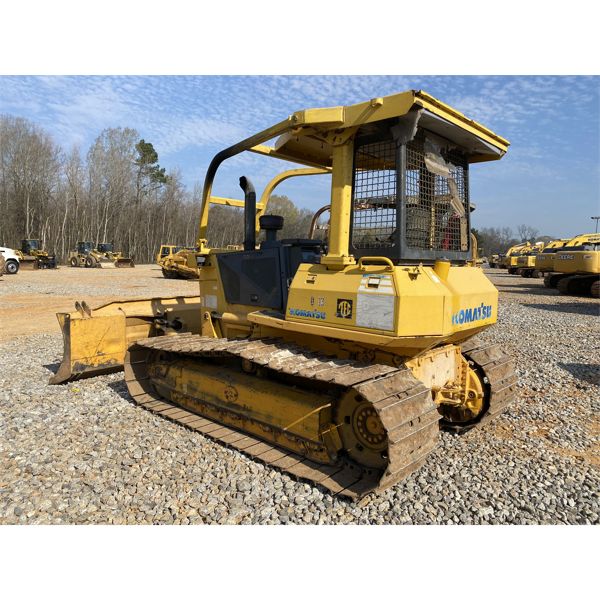

Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 25,574 lb |
|---|---|
| Fuel Capacity | 59.5 gal |
| Cooling System Fluid Capacity | 7.4 gal |
| Final Drives Fluid Capacity | 3.5 gal |
| Engine Oil Capacity | 6.1 gal |
| Hydraulic Fluid Capacity | 9.8 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | S6D102E-1 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 106.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
Hydraulic System
| Relief Valve Pressure | 2,988 psi |
|---|---|
| Pump Type | closed center load sensing |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 109 in |
| Width Over Tracks | 98 in |
| Length w/ Blade | 193 in |
Transmission
| Max Speed - Forward | 4.8 mph |
|---|---|
| Max Speed - Reverse | 5.9 mph |
| Transmission Type | Hydroshift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Undercarriage
| Ground Pressure | 3 psi |
|---|---|
| Track Gauge | 71 in |
| Number of Track Rollers per Side | 7 |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
| Standard Shoe Size | 28 in |
| Ground Contact Area | 5,957 in³ |
| Track Pitch | 7 in |
Standard Blade
| Width | 120 in |
|---|---|
| Height | 42 in |
| Capacity | 3.51 yd³ |
