Komatsu

D50P-16

Crawler Dozer

Operating Weight
30,027 lb
Gross Power
118.0 hp
All crawler dozers

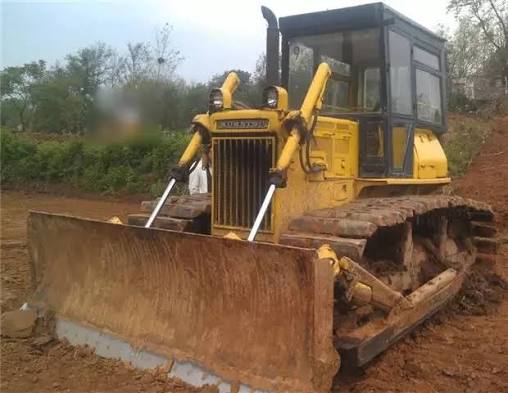

Komatsu D50P-16 Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,027 lb

Engine

Engine specifications
Engine ModelSL4D130-1
Displacement518 in³
Power Measured @1,900 rpm
Gross Power118.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab115 in
Length of Track on Ground115 in
Width Over Tracks115 in
Length w/ Blade196 in
Length w/o Blade156 in

Transmission

Transmission specifications
Transmission TypeDD
Number of Forward Gears4
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge81 in
Number of Track Rollers per Side7
Number of Shoes per Side47
Number of Carrier Rollers per Side2
Standard Shoe Size34 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width139 in
Height38 in
Capacity4.39 yd³
