Komatsu

D53A-18A

Crawler Dozer

Operating Weight
30,865 lb
Gross Power
130.0 hp
All crawler dozers

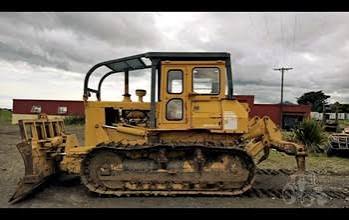

Komatsu D53A-18A Crawler Dozer
1 / 5
Image 1 of 5
Image: makana.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,865 lb

Engine

Engine specifications
Engine Model6D125-1
Displacement674 in³
Power Measured @1,900 rpm
Gross Power130.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab115 in
Length of Track on Ground97 in
Width Over Tracks96 in
Length w/ Blade192 in
Length w/o Blade150 in

Transmission

Transmission specifications
Transmission TypeTF
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Track Gauge77 in
Number of Track Rollers per Side6
Number of Shoes per Side41
Number of Carrier Rollers per Side2
Standard Shoe Size18 in
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width130 in
Height41 in
